RL-CS6.5

RL-CS6.5

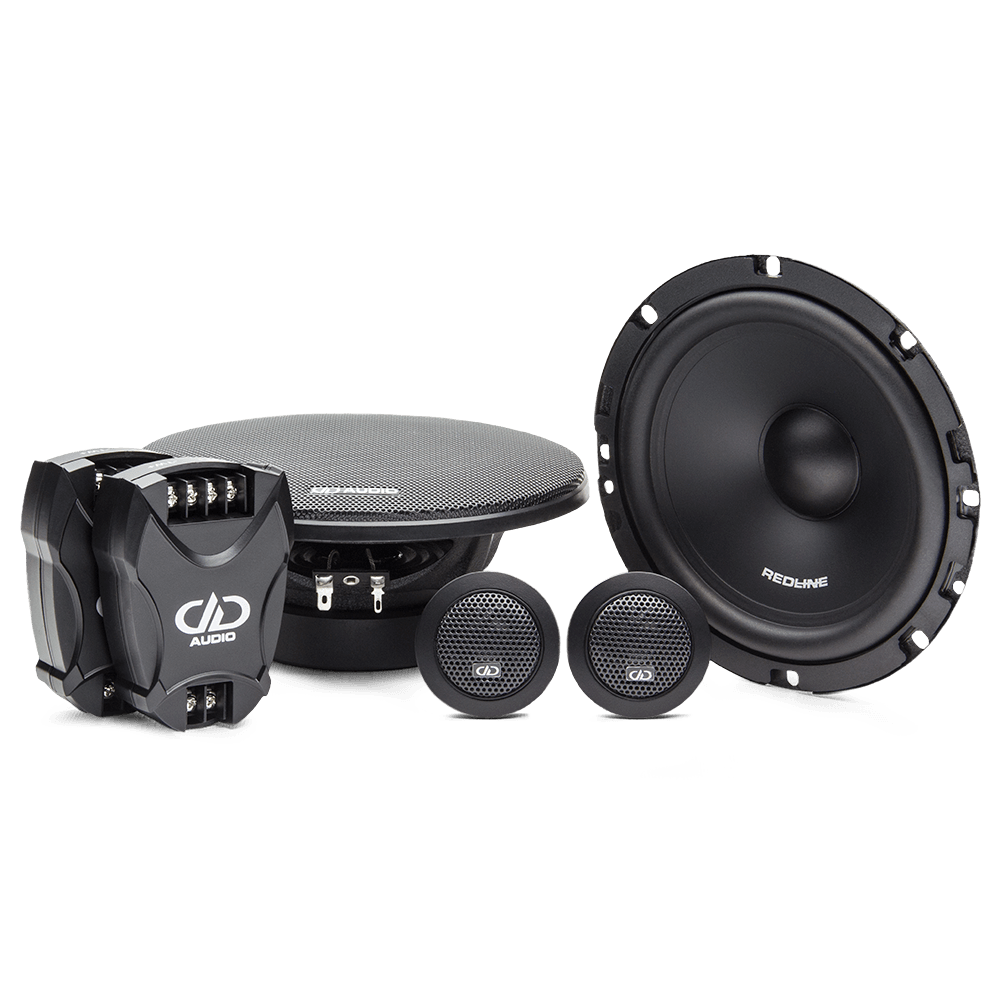

REDLINE 2-WAY COMPONENT SET

REDLINE speakers are designed to provide an amazing listening experience. They are highly efficient and offer features only found on true high-fidelity speakers.

Features:

  • 2-Way 12dB/oct crossover
  • Silk Dome Tweeter
  • 10 Oz Woofer Magnet
  • Copper Shorting Ring Design
  • Double Slit, Aluminum Former
  • Poly Coated Curvilinear Cone

Mid-Range

Driver Size: 6.5
Impedance: S4
Frequency Response (Hz): 40 - 25k
dBSPL: 90
Mounting Diameter (In): 5.55
Mounting Diameter (MM): 141
Mounting Depth (In): 2.45
Mounting Depth (MM): 62.2

Tweeter

Driver Size: 25
Impedance: 4
Mounting Diameter (In): 1.94
Mounting Diameter (MM): 49.2
Mounting Depth (In): 0.69
Mounting Depth (MM): 17.5

Specs

Specs

Driver Size: 25
Impedance: 4
Mounting Diameter (In): 1.94
Mounting Diameter (MM): 49.2
Mounting Depth (In): 0.69
Mounting Depth (MM): 17.5

Specs

Specs

Driver Size: 6.5
Impedance: S4
Frequency Response (Hz): 40 - 25k
dBSPL: 90
Mounting Diameter (In): 5.55
Mounting Diameter (MM): 141
Mounting Depth (In): 2.45
Mounting Depth (MM): 62.2

Specs

Resources

No items found

Included in the Box

2 Woofers
2 Tweeters
Woofer Crossovers
Tweeter Crossovers
Tweeter Mounting Hardware
