This Model Has Been Discontinued

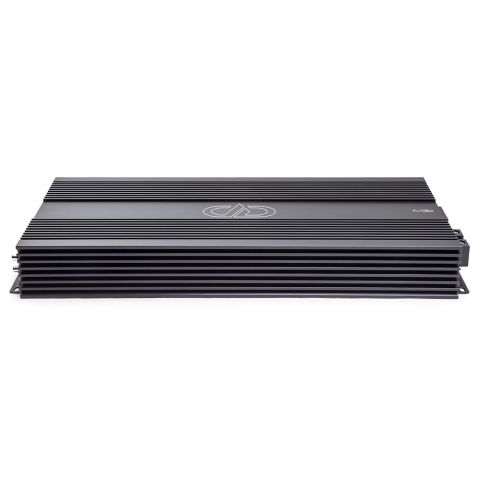

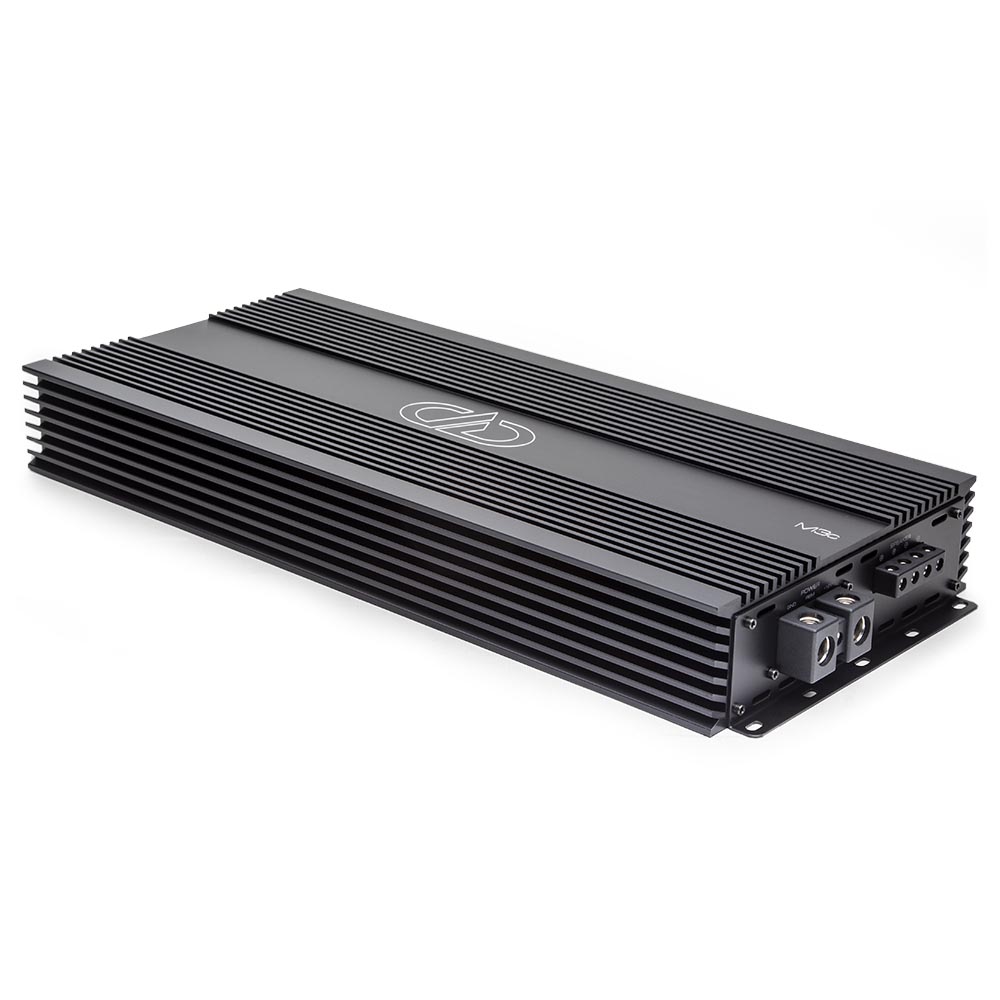

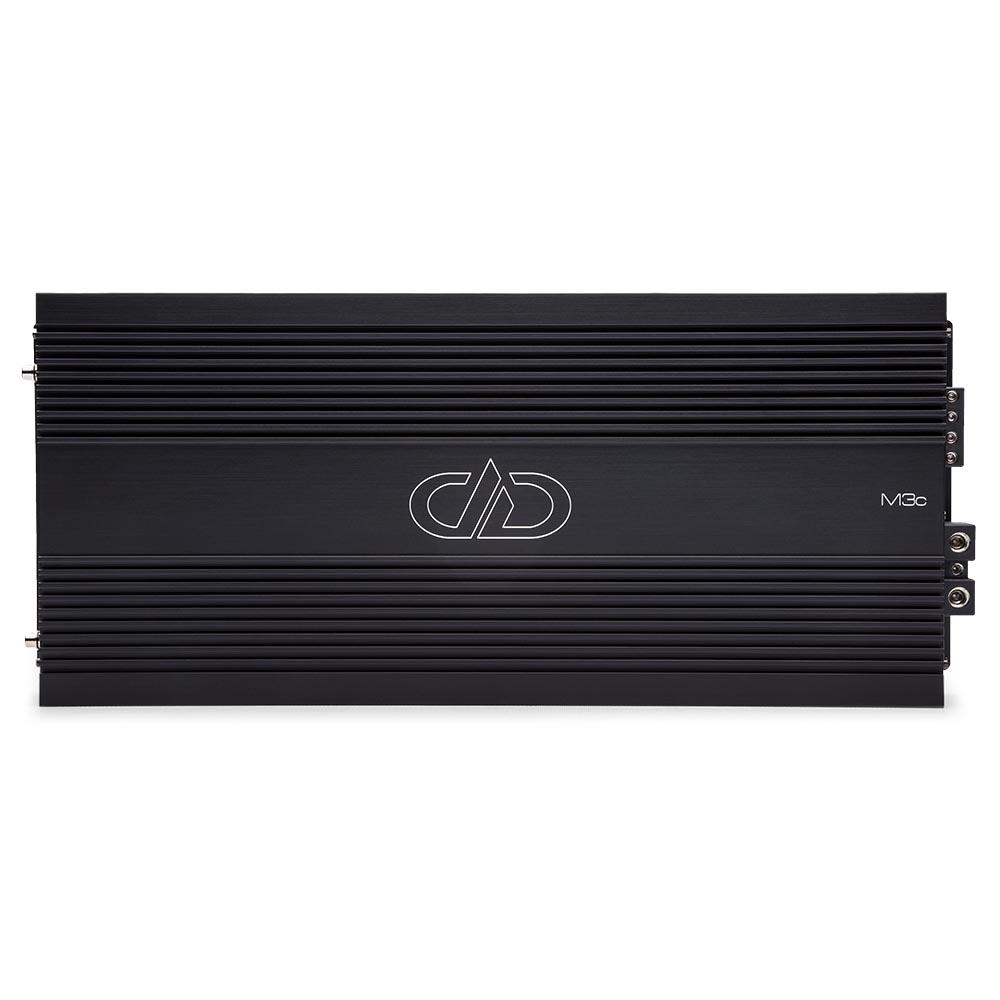

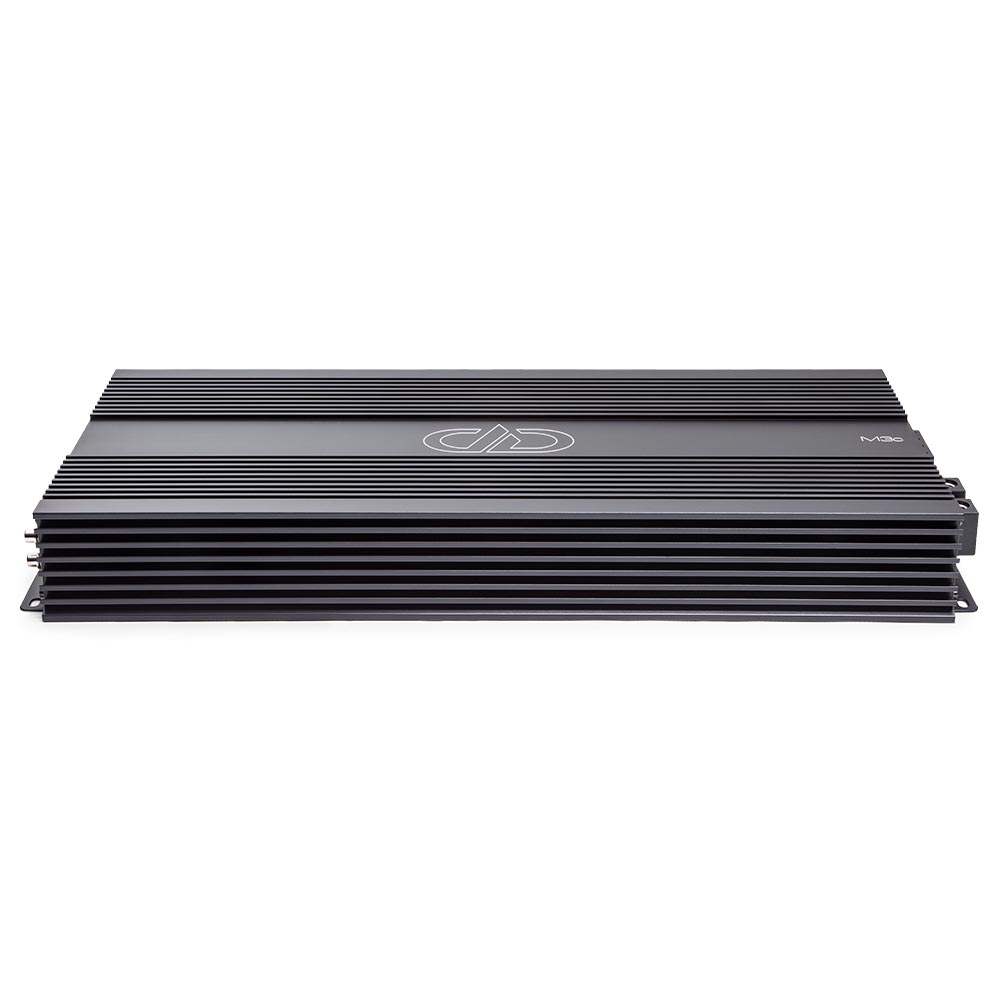

M3c


M SERIES MONOBLOCK AMPLIFIER

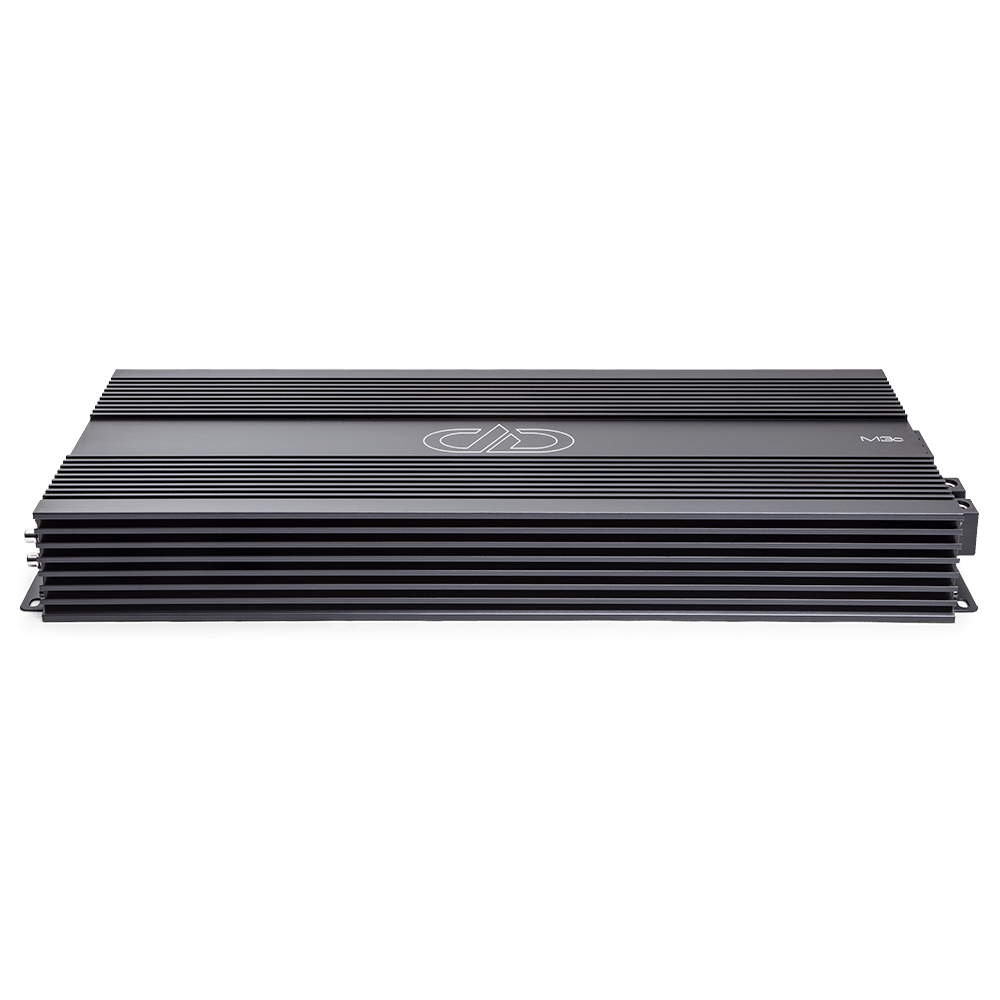

wp-content/uploads/2020/01/M3c-3qtr-top-2018-rd.png

Search Authorized DD AUDIO Dealers Near You

The M3 has been our go to amp for many years when a system design requires stepping up to some real high power. Now, in its fourth generation, the M3c continues to set the bar in its power class. For the M3c we use our LV power supply that provides increased current capability and efficiency compared to traditional designs. The strong output section delivers over 3800 Watts of clean power at standard alternator charging levels. We designed the M3c with stability, not overrated specs in mind. This makes the M3c the perfect amp for producing the power levels needed in extreme daily and competition installs.

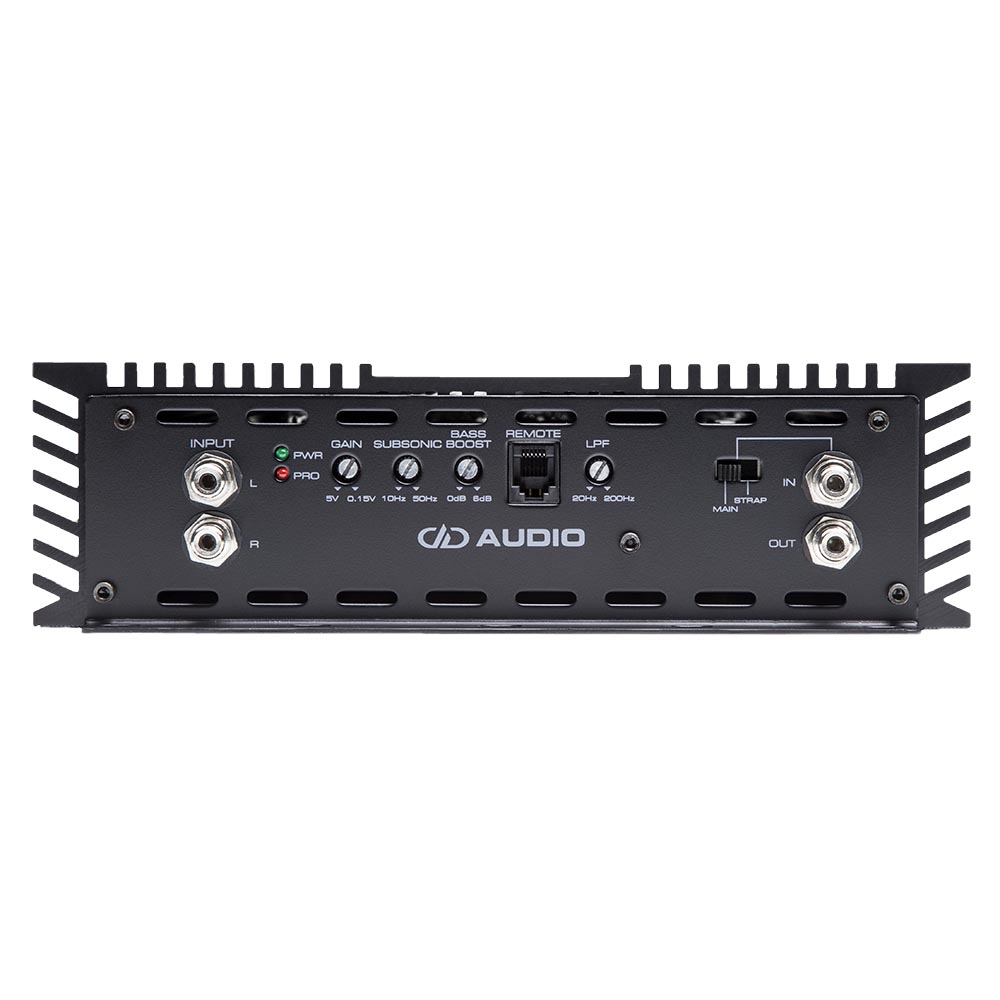

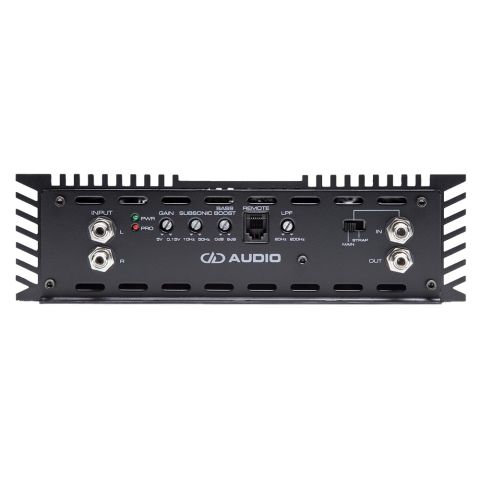

For installation ease, and upgradeability the M3c features Strap mode. When using Strap Mode you’re able to have two M3c in an install and control the Strapped amplifier level settings from the Main amp. You’ll also be able to use a single remote gain to control both amps.

The M3c also comes with the VM-RMT remote control. The VM-RMT is a mini amplifier diagnostic center that’s able to mount within arms reach for real-time performance monitoring and adjustments. From this remote, you have fine gain control, amplifier input voltage monitoring, and output clipping monitoring.

M3c

Operating Voltage: 9 - 16
Test Voltage: 14.4
Input Channel(s): 1
Output Channel(s): 1
Continuous Wattage @1ohm: 3,800 x 1
Continuous Wattage @1ohm – 12v: 2,400 x 1
Dynamic Wattage: 5,000 x 1
Max Current Draw (Amps): 400
RCA Input Voltage Sensitivity: 5 - 0.15
RCA Input S/N: > 85dB
THD: < 0.02%
Pass Thru Output: Yes
Remote Control: Remote Included in Box
Power Wire Gauge: 1 x 0
Speaker Wire Gauge: 10
Dimensions (Inches): 19.68 x 9.05 x 2.57
Dimensions (MM): 500 x 230 x 65.5
Shipping Weight (Lbs): 23
Price (USD): Contact Dealer

The M Series amplifiers are over-built and purpose driven. These sub stage workhorses have been staples of DD Audio’s product lineup for over a decade and they continue to set the bar for high performance class D monoblocks. All M Series feature our innovative LV power supply technology that gives you the most power possible from your vehicle’s charging system.
