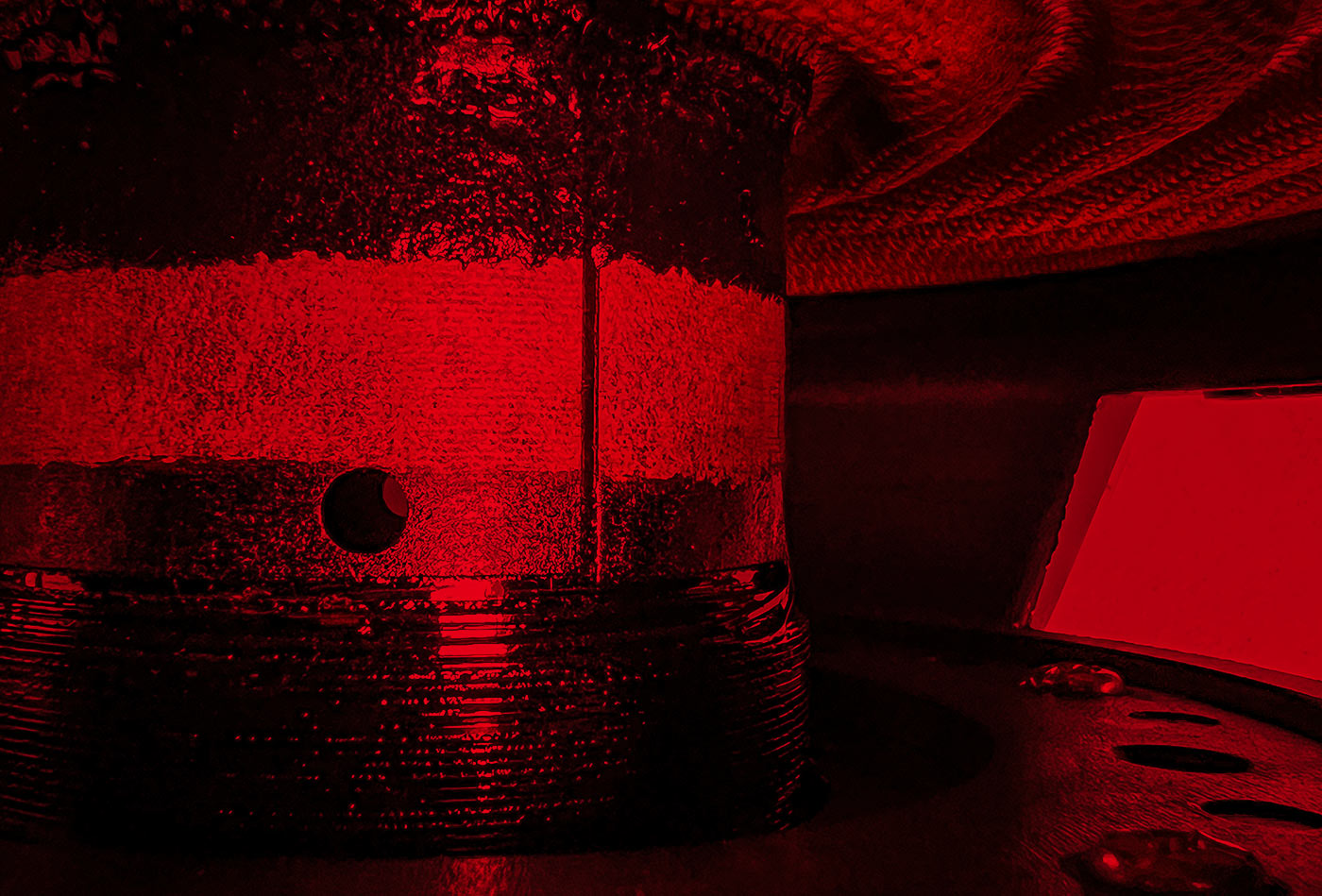

The voice coil is Made in the USA, and has evolved over generations to be the envy of DD’s competitors. Among the 5 layers in these complex formers are Nomex and Polyamide which insulate the coil, protecting the glue joints between the spider and coil former. These synthetic layers are sandwiched by dual aluminum layers, which transfer heat away from the voice coil windings (again, acting as a heat sink). The wire and adhesives are manufactured to endure the most extreme high temperatures and the coil thermosetting occurs over 2 baking and resin coating cycles. The double slit design helps to reduce distortion and inductance. In short, this voice coil has matured to include the best known materials and techniques available to deliver matchless performance.

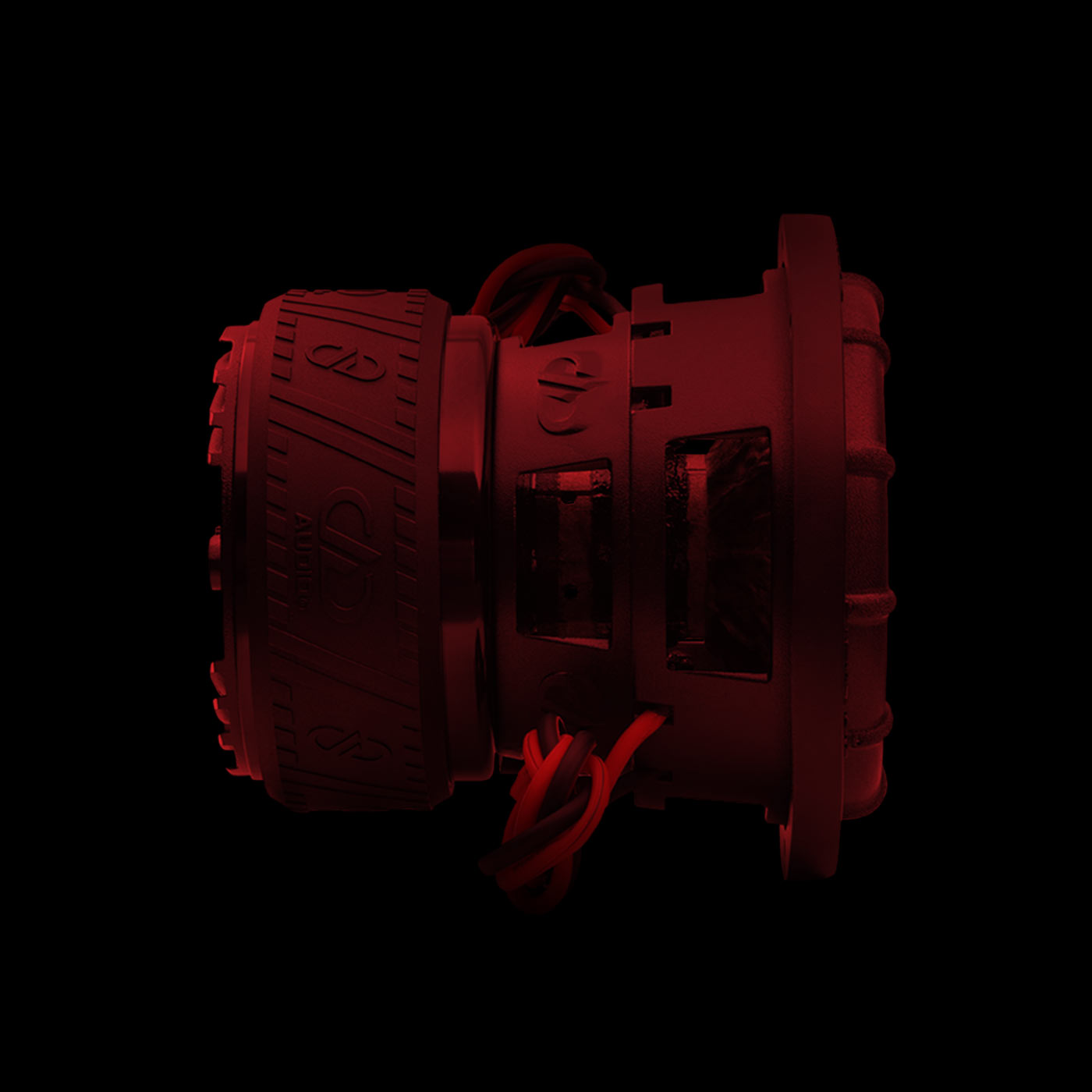

The motor is a work of pure magnetic magic. DD AUDIO uses their own proprietary magnet tooling to maximize the surface area transfer from the low carbon back and top plates. The motor on the 1506a perfectly protects DD AUDIO’s reputation for having the tightest gaps in the industry, with minimal tolerances around the coil windings for increased gap flux. On custom orders, DD offers the option of SuperCharging the gap with neo to further increase flux by 30% or more. The motor also features DD AUDIO’s Free Flow Cooling System, which employs vents and cross vents running through the magnet gap, pole piece, top plates and back plates. The more excursion the speaker sees, the higher the airflow through the motor and around the coil. All motors use Faraday shorting rings to reduce distortion and inductance.

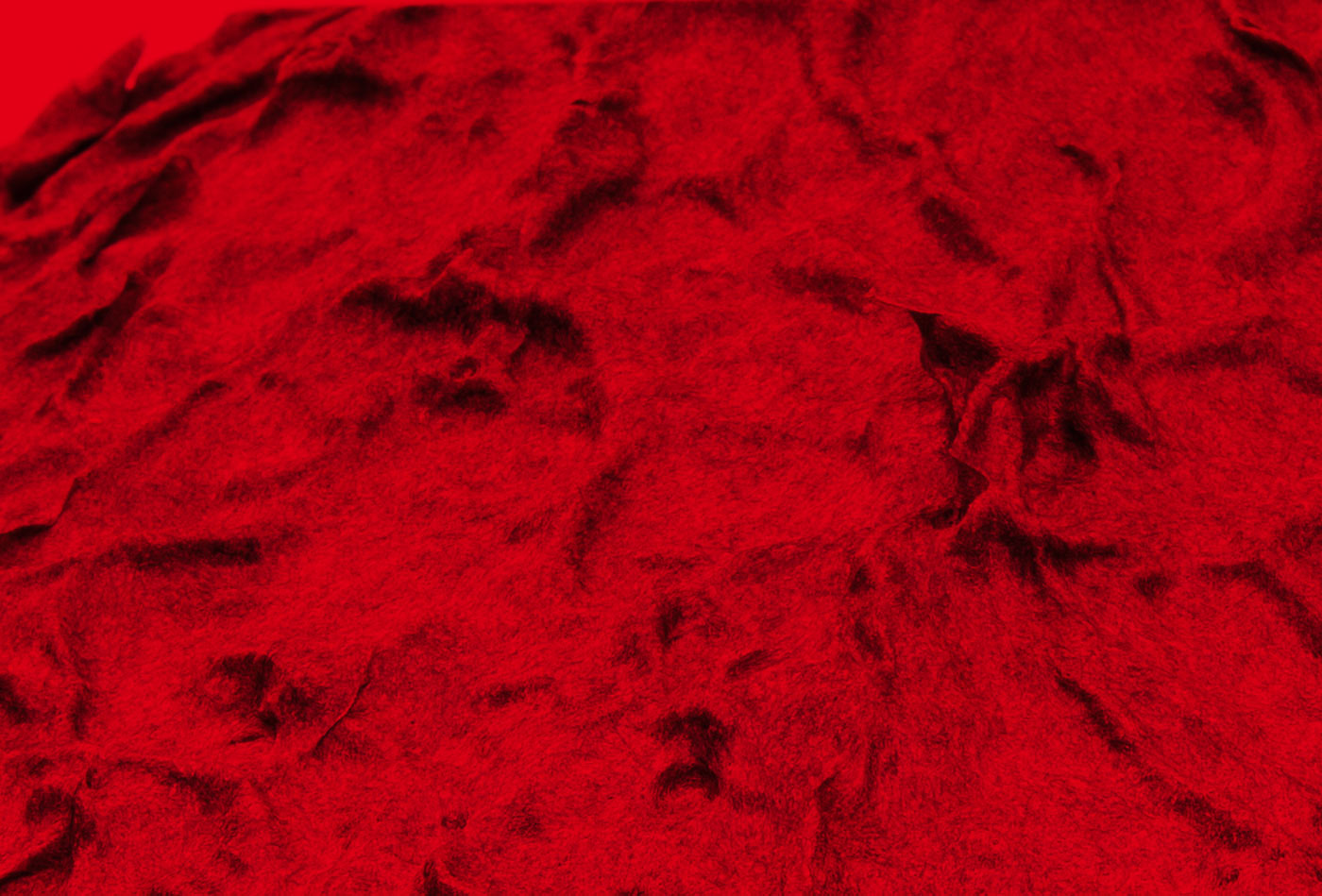

This sub is Made in the USA with as many Made in the USA components as DD AUDIO can reasonably acquire. Among those components is the USA made cone, engineered to be the lightest and stiffest pulp cone in existence. The key ingredient to its incredible strength to weight ratio is Carbon Fiber. Augmented by Kevlar and a myriad of synthetic and natural fibers, the cone is low density formed on non-press molds to increase the total cross section area, promoting a web of strengthening ribs across its backside. This high cross section area doubles the rigidity without increasing mass. The exotic fibers cost more and the cones take longer to form, but the result is audibly distinguishable; and to hear the difference of the 1506a is to hear the difference of handmade, USA build quality.
