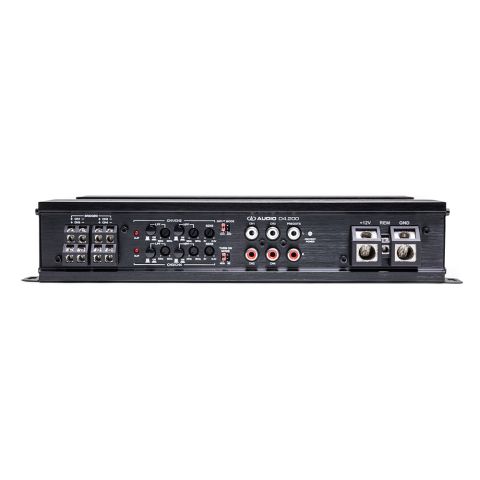

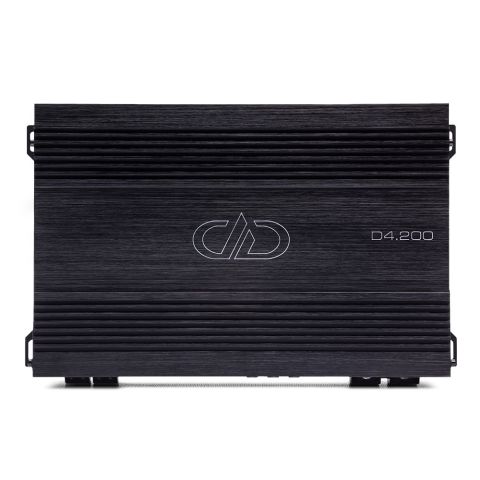

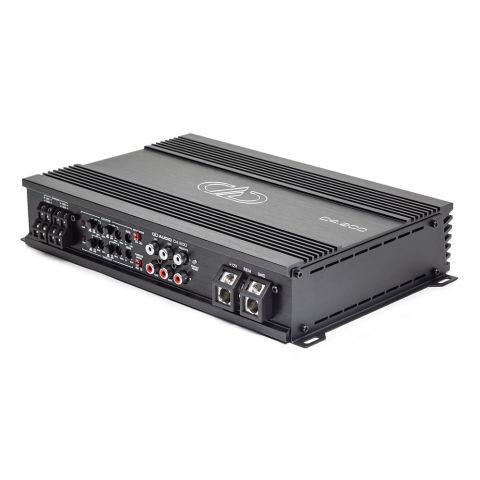

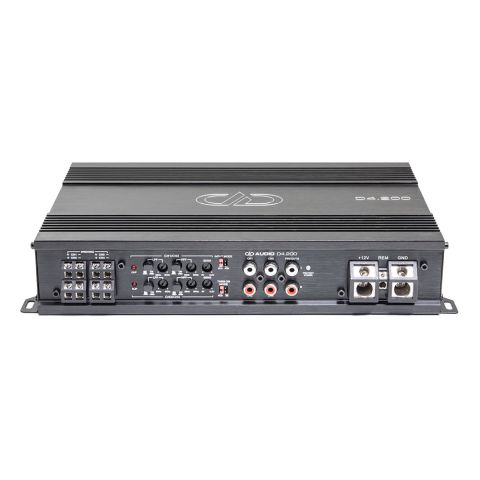

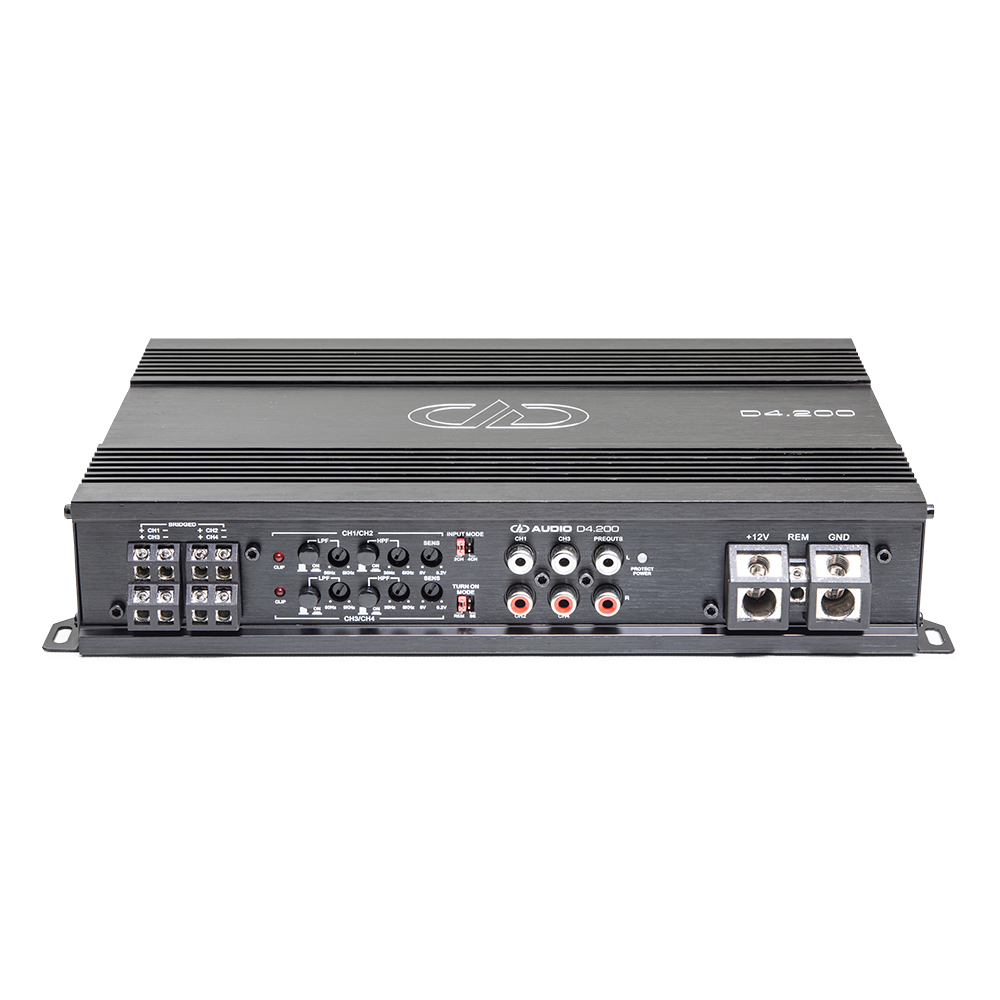

D4.200

D Series amplifiers are compact amplifiers with full size features. The D4.200 is a bridgeable four channel amplifier with a total output of 2200 watts. It is 1ohm stereo stable making it perfect for multi driver arrays.

Precision tuning is made easy with variable bandpass crossovers and LED clipping indicators. Installation is made easier with single side controls and connections, input mode switches, and auto turn-on options.

For boat, bike, and ATV applications conformal coated internal circuitry and corrosion proof switches offer increased moisture resistance.

Even though the D Series amplifiers are very compact they still employ set screw power and speaker terminals, discrete output sections, and heavy duty anodized aluminum heatsinks. This ensures power management is proper from input to output, increasing both in-use stability and long term durability.

Features

Conformal Coated Internal Circuitry
Corrosion Proof Switches
Full Bandpass Crossovers
Auto Turn-On
Clipping Indicators
Differential RCA Inputs
2ch or 4ch Input Mode

D4.200: 800 Watt – Compact 4 Channel Amplifier

Operating Voltage:	9 - 16
Test Voltage:	14.4
Output Channel(s):	4
Continuous Wattage @4ohm:	200 x 4 / 700 x 2
Continuous Wattage @2ohm:	370 x 4 / 1040 x 2
Continuous Wattage @1ohm:	550 x 4
Max Current Draw (Amps):	220
RCA Input Voltage Sensitivity:	8 ~ 0.2
RCA Input S/N:	> 85dB
Damping Factor:	> 100
THD:	< 0.2%
Frequency Response (Hz):	20 - 25k
Sub-Sonic Filter:	30 - 5k
Low-Pass Filter:	50 - 5k
ZVL Input:	No
Pass Thru Output:	Yes
Power Wire Gauge:	2
Speaker Wire Gauge:	12
Dimensions (Inches):	10.5 x 7 x 2
Dimensions (MM):	268 x 177 x 54
Price (USD):	829 each

LOUD AND CLEAR

If you’re looking for superior motorcycle audio solutions that sound as good on the highway as they do while you’re jammin’ out in the parking lot, we’ve got you covered. From amplifiers to speakers and DSP’s, these products are powerful enough to break through the roars of the ride to give direct, loud and clear sound.

Learn why these products are the superior choice for motorcycle audio solutions.

Learn More

superior motorcycle audio with VO-W speakers with horn in saddle bags

The D Series amplifiers are designed to be the best amps on the market for the everyday mobile audio enthusiast. These class D amplifiers feature compact chassis, superb sound quality, reliable circuits, and powerful output sections. They’re available in several channel and power configurations assuring there is a D Series amp to power your system.

Resources

Product Manual

FAQ's

Included in the Box


	Hex Wrenches
	Mounting Screws
	Spare Switch Jumpers
