M.80b


Compact Chassis, Incredible Power

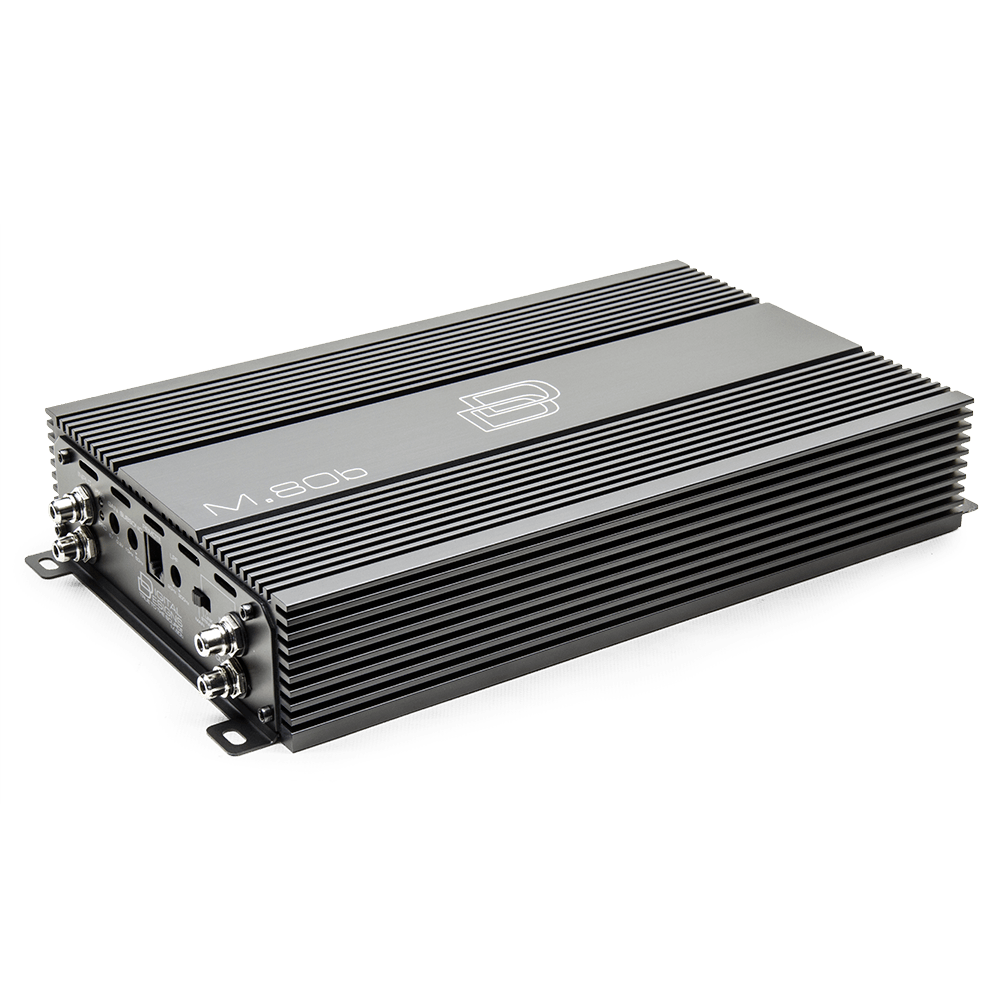

wp-content/uploads/2021/05/M.80b-3qtr-top-left.png

Search Authorized DD Audio Dealers Near You

Show results within of

The M.80b delivers 700 watts of power at 12 Volts, over 900 Watts at 14.4 Volts, and over 1400 watts of dynamic power. Incredibly, all of this power comes from a chassis less than 7 inches wide and 11 inches long. This amp is perfect for integrating high-end, hard driving audio into tightly constrained vehicle interiors.

For installation ease, and upgradeability the M.80b features Strap and Link mode. When using one of these modes you’re able to use multiple M.80b in an install and control the Strapped or Linked  amplifiers level settings from the main amp. You’ll also be able to use a single remote gain to control all Strapped or Linked amps.

The M.80b also comes with the VM-RMT remote control. The VM-RMT is a mini amplifier diagnostic center that’s able to mount within arms reach for real-time performance monitoring and adjustments. From this remote you have fine gain control, amplifier input voltage monitoring, and output clipping monitoring.

M.80b

Test Voltage: 12 / 14.4
Input Channel(s): 1
Output Channel(s): 1
Continuous Wattage @1ohm: 700x1 @ 12V / 900x1 @ 14.4V
Max Current Draw (Amps): 100
RCA Input Voltage Sensitivity: 8 - 0.2
RCA Input S/N: >100dB
THD: <0.02%
Pass Thru Output: Yes
Power Wire Gauge: 1 x 0
Speaker Wire Gauge: 10
Dimensions (Inches): 11 x 6.9 x 2.03
Dimensions (MM): 27.94 x 17.53 x 5.16
Shipping Weight (Lbs): 10
Price (USD): 429 each

The M Series amplifiers are over-built and purpose driven. These sub stage workhorses have been staples of DD Audio’s product lineup for over a decade and they continue to set the bar for high performance class D monoblocks. All M Series feature our innovative LV power supply technology that gives you the most power possible from your vehicle’s charging system.

Included in the Box
