M2c


M SERIES MONOBLOCK AMPLIFIER

wp-content/uploads/2020/01/M2c-3qtr-top-2018-rd.png

Search Authorized DD Audio Dealers Near You

Show results within of

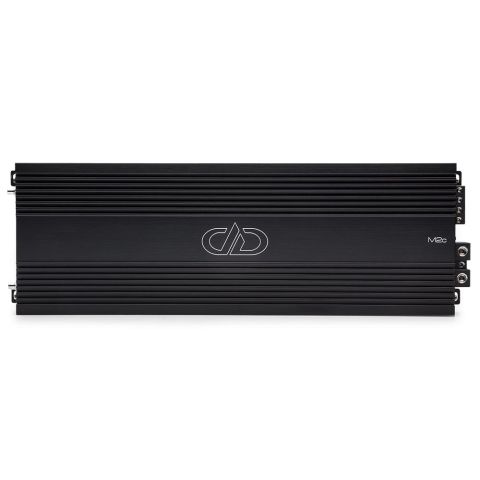

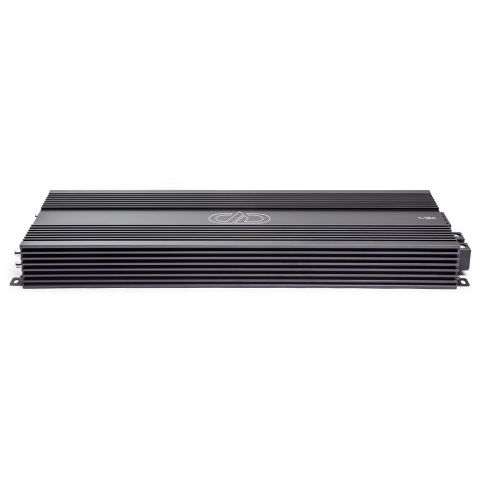

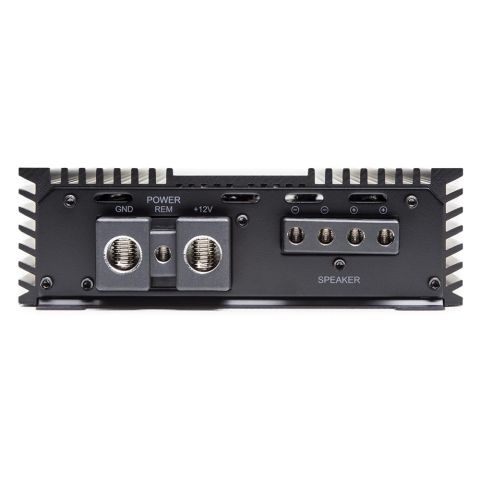

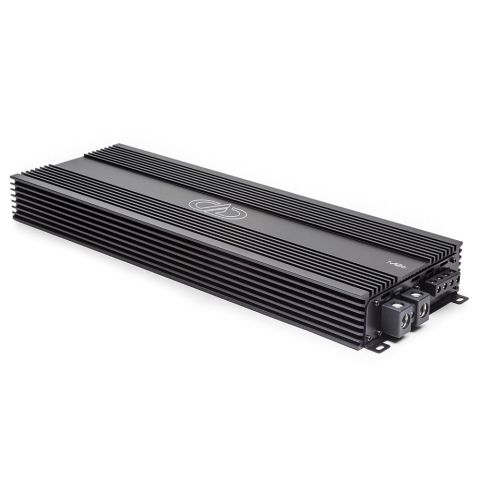

The 4th generation M2 checks in with big power from a small, sleek chassis. The LV twin power supply helps the M2c to produce 1700 Watts of true RMS power at 12 Volts, over 2400 at 14.4 Volts, and a dynamic power of 3400 Watts. With compact dimensions of less than 7 inches wide and 20 inches long, high powered system design just got a whole lot easier using the new M2c. The M2c uses 0AWG power and ground inputs allowing you to optimize current flow to your amplifier. It also has though bolted RCAs for added durability.

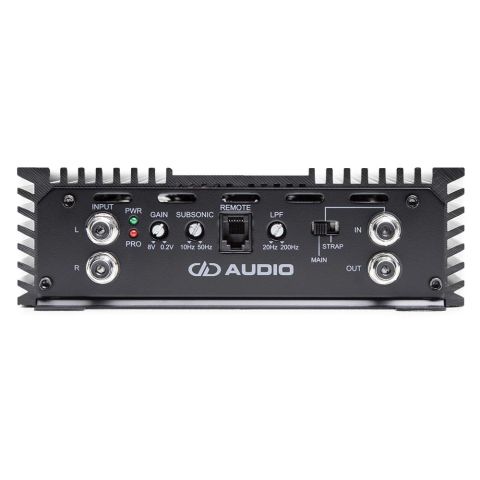

For installation ease, and upgradeability the M2c features Strap mode. When using Strap Mode you’re able to have two M2c in an install and control the Strapped amplifier level settings from the Main amp. You’ll also be able to use a single remote gain to control both amps.

The M2c also comes with the VM-RMT remote control. The VM-RMT is a mini amplifier diagnostic center that’s able to mount within arms reach for real-time performance monitoring and adjustments. From this remote, you have fine gain control, amplifier input voltage monitoring, and output clipping monitoring.

M2c

Operating Voltage: 12 / 14.4
Input Channel(s): 1
Output Channel(s): 1
Continuous Wattage @1ohm: 2,400 x 1
Continuous Wattage @1ohm – 12v: 1,700 x 1
Dynamic Wattage: 3,500 x 1
Max Current Draw (Amps): 250
RCA Input Voltage Sensitivity: 8 - 0.2
RCA Input S/N: 100dB
THD: <0.02%
Pass Thru Output: Yes
Remote Control: Remote Included in Box
Power Wire Gauge: 1 x 0
Speaker Wire Gauge: 10
Dimensions (Inches): 19.68 x 6.88 x 2.14
Dimensions (MM): 500 x 175 x 54.5
Shipping Weight (Lbs): 15
Price (USD): Contact Dealer

The M Series amplifiers are over-built and purpose driven. These sub stage workhorses have been staples of DD Audio’s product lineup for over a decade and they continue to set the bar for high performance class D monoblocks. All M Series feature our innovative LV power supply technology that gives you the most power possible from your vehicle’s charging system.

Included in the Box
