9500 Series


Legendary

9510L - 10 Inch 9500 Series Subwoofer - Photo angled right to show left, including dustcap, surround, basket, and motor boot with DD AUDIO trademark adorning.
9510L - 10 Inch, 9500 Series Subwoofer - Photo angled top to bottom showing surround, part of dustcap and cone, basket and motor boot with trademark DD AUDIO logo adorning.

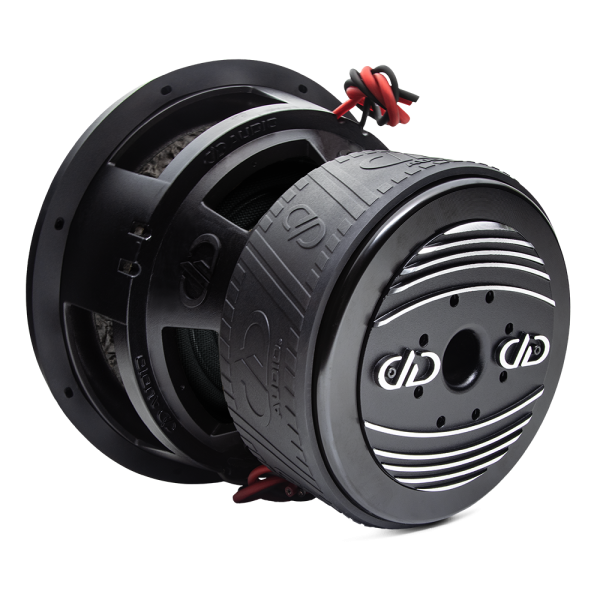

9510L - 10 Inch 9500 Series Subwoofer - Photo angled back to front down right side, showing motor heatsink, boot, basket, leads, all adorned in trademark DD AUDIO embossing.

    The all-new 9500 “L” revision transcends its legendary status by restoring meaning to the phrase “State of the Art”. The evolution of this historic DD series overcomes the challenge of a high bar with new features first introduced in the Z Series and 2508g, including a Dual Stage Heat Sink and 9.4″ 6 Layer Composite Spider. These additions perfectly complement the 9500’s host of premium features from the powerful motor with Free Flow Cooling System, to the USA Made 8-layer voice coil and USA Made cone and dust cap. Debuting on 15” is the 2nd generation V-ROM surround, maximizing excursion and surface area.

    *spider color may vary depending on production run – design, material and build quality remain the same


    MODEL / SPECS

    MODEL / SPECS



    Watts RMS



    Peak Power




    Voice Coil Impedance

    D1 / D2


    Piston Diameter (In)

    9 1/4


    Fs (Hz)

    34.32


    Qms

    5.093


    Qes

    0.3982


    Qts

    0.3693


    Vas (Ltr)





    Frame OD (In)

    11 7/16


    Frame OD w/ Gasket (In)

    11 9/16


    Mounting Diameter (In)

    10 3/16


    Mounting Depth (In)

    8 13/16


    Motor Diameter (In)

    9 5/16


    Motor Depth (In)

    4 5/8


    Displacement (CuFt)



    Ported Enclosure (CuFt)

    1.25 - 1.5


    Competition Grade

    Whether you’re in the lanes going for an SPL world record, or you’re out to impress judges with a completely customized classic, DD AUDIO’s competition grade equipment has been performance built to take your ride to the next level.

    Made in usa icon

    This product is Made in the USA. It’s comprised of as many US made parts as could be reasonably sourced in America, including essential components fabricated in-house at the DD headquarters in Oklahoma City, Oklahoma where it was assembled by experienced hands.
