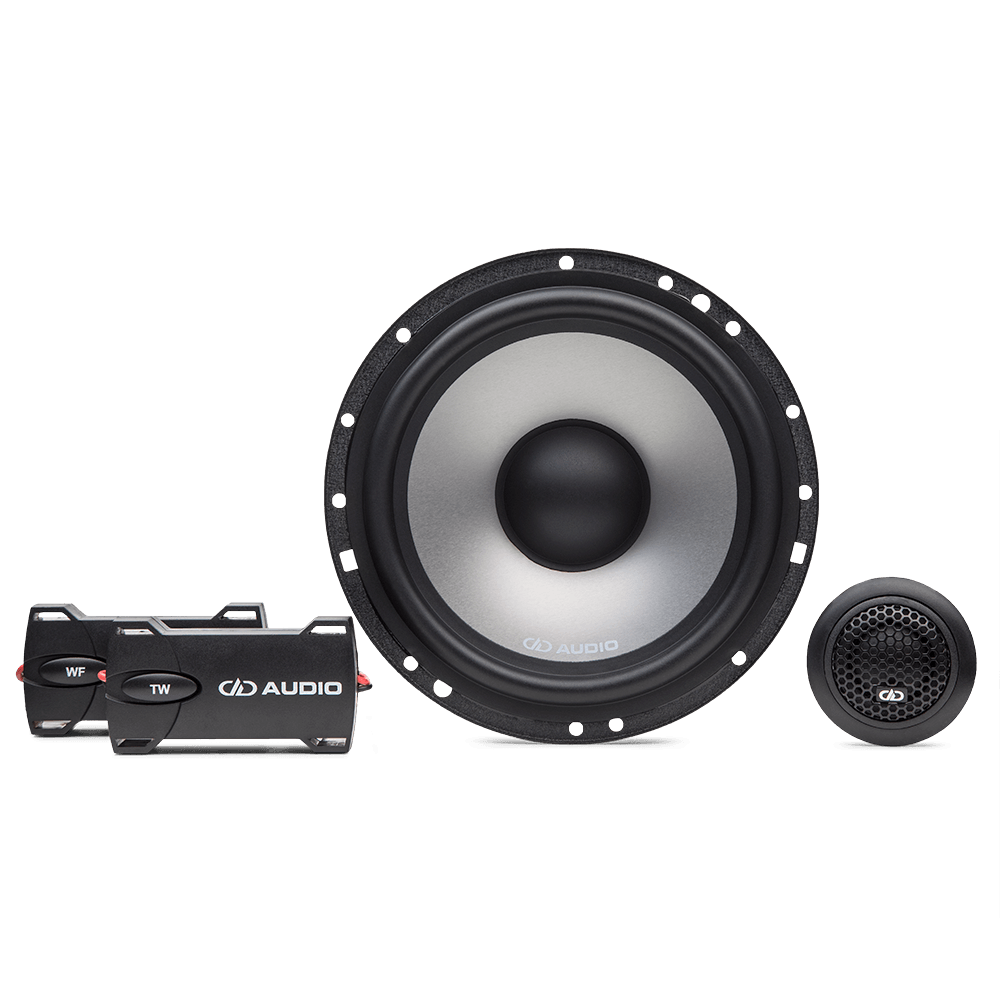

D Series 6.5" COMPONENT SPEAKER SET

Authorized DD Audio Dealers Near You


Show results within of

The D Series components are purposefully built, enthusiast quality sets with everything you need for great sound and nothing you don’t.

The woofers deliver punchy midbass and smooth midrange by utilizing features like high energy motor assemblies, copper pole caps, double slit voice coils, aluminum cones, and frequency smoothing rubber dustcaps.

The T2b 25mm tweeter features an ultra-light fabric dome coupled to a high-efficiency, low-distortion neo motor for superb highs.

For installation flexibility, this set includes separate in-line woofer and tweeter crossovers, a wide array of tweeter mounting hardware, and shallow mount woofer frames. The tweeter crossovers also feature a -3db attenuation jumper for fine tuning the tweeter output to the application.

Read the D Series Product Spotlight on The DDownlow.

DC6.5a - Mid-Range

Driver Size: 6.5"
Watts RMS: 75
Peak Power: 150
Impedance: S4
Frequency Response (Hz): 60 - 25k
dBSPL: 90
Mounting Diameter (In): 5.56
Mounting Diameter (MM): 141.22
Mounting Depth (In): 2.4
Mounting Depth (MM): 60.96

T2b - Tweeter

Driver Size: 25mm
Watts RMS: 25 - 150
Voice Coil Diameter (Inches): 25
Impedance: S4
Frequency Response (Hz): 2k - 30k
dBSPL: 90
Mounting Diameter (In): 1.62
Mounting Diameter (MM): 40.38
Mounting Depth (In): 23/32
Mounting Depth (MM): 17.27

Crossover

Input Channels: 1
Output Channels: Tweeter / Mid-Woofer
Dimensions (Inches): 3.22 x 1.73 x 1.05
Dimensions (MM): 82 x 44 x 27
Shipping Weight (Lbs): 6
Price (USD):

185

Set

Specs

Shipping Weight (Lbs): 6
Price (USD):

185

Set

Specs

Driver Size: 25mm
Watts RMS: 25 - 150
Voice Coil Diameter (Inches): 25
Impedance: S4
Frequency Response (Hz): 2k - 30k
dBSPL: 90
Mounting Diameter (In): 1.62
Mounting Diameter (MM): 40.38
Mounting Depth (In): 23/32
Mounting Depth (MM): 17.27
Shipping Weight (Lbs): 6
Price (USD):

185

Set

Specs

Shipping Weight (Lbs): 6
Price (USD):

185

Set

Specs

Driver Size: 6.5"
Watts RMS: 75
Peak Power: 150
Impedance: S4
Frequency Response (Hz): 60 - 25k
dBSPL: 90
Mounting Diameter (In): 5.56
Mounting Diameter (MM): 141.22
Mounting Depth (In): 2.4
Mounting Depth (MM): 60.96
Shipping Weight (Lbs): 6
Price (USD):

185

Set

Specs

Shipping Weight (Lbs): 6
Price (USD):

185

Set

The D Series components and coaxials are high tech, high fidelity speakers designed for the listener wanting to go well beyond the standard factory upgrade.

Resources

No items found

Included in the Box

2 Woofers
2 Tweeters
Woofer Crossovers
Tweeter Crossovers
Tweeter Mounting Hardware
