SS1100 – APX 515 Report
March 17, 2025
Waveform
Sine
Generator Level
6.150Vrms
DC Offset
0.000V
Frequency
1kHz
Low-Pass Filter
Elliptic
RMS Level
Ch. 1
1.253kW
March 17, 2025
Waveform
Sine
Generator Level
6.150Vrms
DC Offset
0.000V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Measured Frequency
THD+N Ratio
Ch. 1
0.954314
March 17, 2025
Start Frequency
20Hz
Stop Frequency
20kHz
Generator Level
3.075Vrms
DC Offset
0.000V
EQ
None
Pre-Sweep
0.000S
Sweep
350mS
Extend Acquisition By
50mS
Secondary Source
None
Relative Level

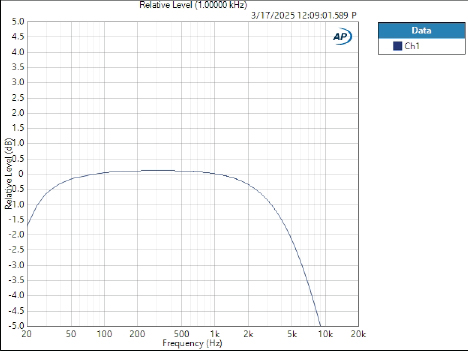

March 17, 2025
Waveform
Sine
Generator Level
3.150Vrms
DC Offset
0.000V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Signal to Noise Ratio
Ch. 1
93.671dB
March 17, 2025
Waveform
Sine
Generator Level
3.075Vrms
DC Offset
0.000V
EQ
None
Start Frequency
20kHz
Stop Level
20Hz
Step Type
Logarithmic
Number of Points
31
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Signal Path
Weighting Filter
Signal Path
Phase Ref
Ch. 1

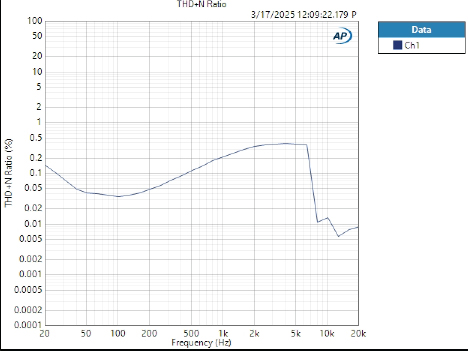

THD+N Ratio (%) vs Frequency (Hz)
March 17, 2025
Waveform
Sine
Frequency
1kHz
Start Level
1.000Vrms
Stop Level
6.300Vrms
Step Type
Logarithmic
Number of Points
31
DC Offset
0.000V
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Generator Frequency

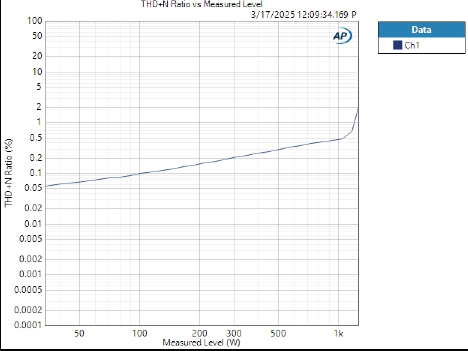

THD+N Ratio vs Measured Level
