SS2000 – APX 515 Report
Test One
January 16, 2024
Waveform
Sine
Generator Level
305mVrms
DC Offset
0.000V
Frequency
1kHz
Low-Pass Filter
Elliptic
RMS Level
Ch. 1
2.008kW
Test Two
January 16, 2024
Waveform
Sine
Generator Level
370mVrms
DC Offset
0.000V
Frequency
1kHz
Low-Pass Filter
Elliptic
RMS Level
Ch. 1
2.216kW
Test One
January 16, 2024
Waveform
Sine
Generator Level
305mVrms
DC Offset
0.000V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Measured Frequency
THD+N Ratio
Ch. 1
0.928289
Test Two
January 16, 2024
Waveform
Sine
Generator Level
370mVrms
DC Offset
0.000V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Measured Frequency
THD+N Ratio
Ch. 1
10.070895
January 16, 2024
Start Frequency
20Hz
Stop Frequency
20kHz
Generator Level
50mVrms
DC Offset
0.000V
EQ
None
Pre-Sweep
0.000S
Sweep
350mS
Extend Acquisition By
50mS
Secondary Source
None

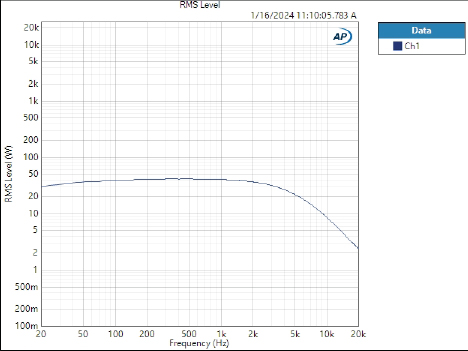

RMS Level (W) vs Frequency (Hz)
January 16, 2024
Waveform
Sine
Frequency
1kHz
Start Level
10mVrms
Stop Level
370mVrms
Step Type
Logarithmic
Number of Points
31
DC Offset
0.000V
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Generator Frequency

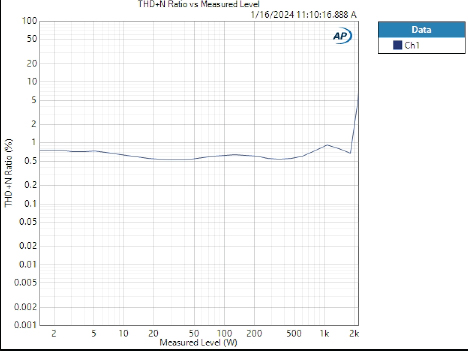

THD+N Ratio vs Measured Level
