SS3000 – APX 515 Report
Test One
July 25, 2024
Waveform
Sine
Generator Level
5.500Vrms
DC Offset
0.000V
Frequency
1kHz
Low-Pass Filter
Elliptic
RMS Level
Ch. 1
3.116kW
Test Two
July 25, 2024
Waveform
Sine
Generator Level
5.500Vrms
DC Offset
0.000V
Frequency
40Hz
Low-Pass Filter
Signal Path
RMS Level
Ch. 1
3.037kW
Test One
July 25, 2024
Waveform
Sine
Generator Level
5.500Vrms
DC Offset
0.000V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Measured Frequency
THD+N Ratio
Ch. 1
0.856940
Test Two
July 25, 2024
Waveform
Sine
Generator Level
5.500Vrms
DC Offset
0.000V
Frequency
40Hz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Measured Frequency
THD+N Ratio
Ch. 1
0.559833

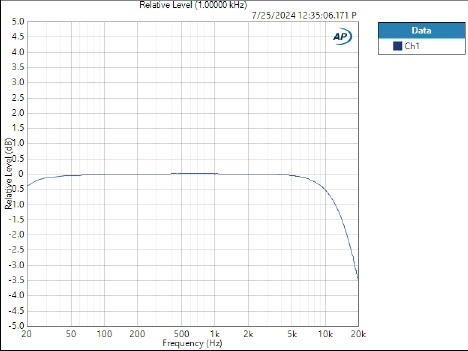

July 25, 2024
Start Frequency
20Hz
Stop Frequency
20kHz
Generator Level
1.000Vrms
DC Offset
0.000V
EQ
None
Pre-Sweep
0.000S
Sweep
350mS
Extend Acquisition By
50mS
Secondary Source
None
July 25, 2024
Waveform
Sine
Generator Level
5.500Vrms
DC Offset
0.000V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Signal to Noise Ratio
Ch. 1
93.930dB

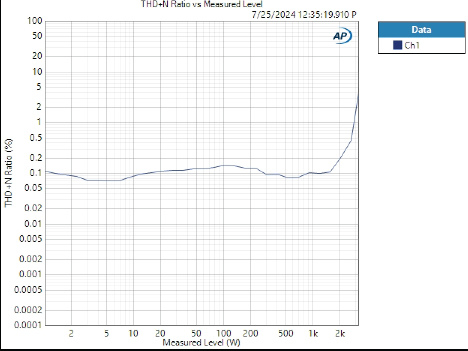

July 23, 2024
Waveform
Sine
Frequency
1kHz
Start Level
100.0mVrms
Stop Level
5.800mVrms
Step Type
Logarithmic
Number of Points
31
DC Offset
0.000V
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Generator Frequency
