SS4.1300 – 2ohm – APX 515b Report
July 25, 2024
Waveform
Sine
Generator Level Ch 1
Generator Level Ch 2
5.775Vrms
5.500Vrms
DC Offset Ch 1
DC Offset Ch 2
0.000V
0.000V
Frequency
1kHz
Low-Pass Filter
Signal Path
RMS Level
Ch. 1
334.8W
Ch. 2
338.7W
July 25, 2024
Waveform
Sine
Generator Level Ch 1
Generator Level Ch 2
5.775Vrms
5.500Vrms
DC Offset Ch 1
DC Offset Ch 2
0.000V
0.000V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Measured Frequency
THD+N Ratio
Ch. 1
1.189352
Ch. 2
0.929163
July 25, 2024

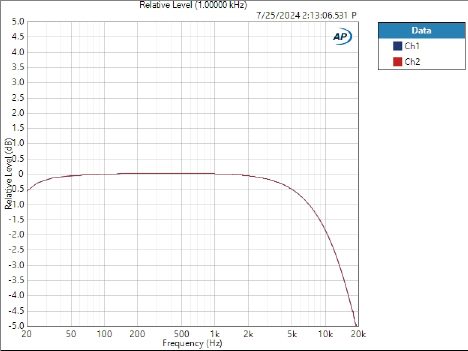

Start Frequency
20Hz
Stop Frequency
20kHz
Generator Level
1Vrms
DC Offset
0.000V
EQ
None
Pre-Sweep
0.000S
Sweep
350mS
Extend Acquisition By
50mS
Secondary Source
None
Relative Level 1k
July 25, 2024
Waveform
Sine
Frequency
1kHz
Start Level
500mVrms
Stop Level
5.800Vrms
Step Type
Logarithmic
Number of Points
31
DC Offset
0.000V
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Generator Frequency

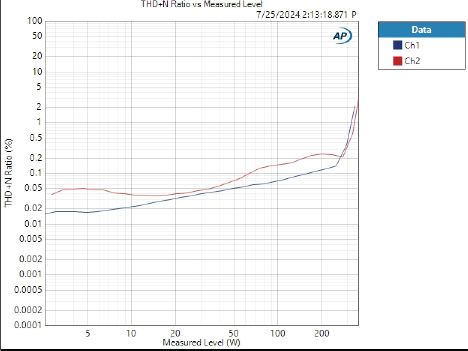

THD+N Ratio vs Measured Level
