SS4.1300 – 4ohm – APX 515b Report
July 25, 2024
Waveform
Sine
Generator Level
7.300Vrms
DC Offset
0.000V
Frequency
1kHz
Low-Pass Filter
Signal Path
RMS Level
Ch. 1
1.192779W
Ch. 2
0.821764W
Waveform
Sine
Generator Level
7.300Vrms
DC Offset
0.000V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Measured Frequency
THD+N Ratio
Ch. 1
1.192779
Ch. 2
0.821764
July 25, 2024
Start Frequency
20Hz
Stop Frequency
20kHz
Generator Level
1.000Vrms
DC Offset
0.000V
EQ
None
Pre-Sweep
0.000S
Sweep
350mS
Extend Acquisition By
50mS
Secondary Source
None

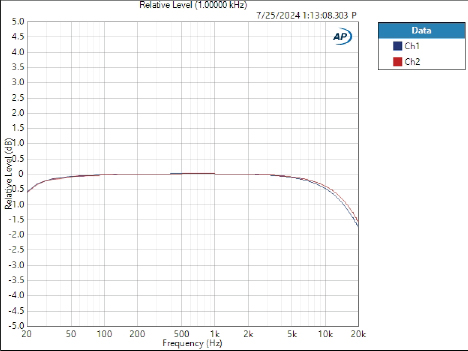

Relative Level 1k
July 25, 2024
Waveform
Sine
Generator Level
7.400Vrms
DC Offset
0.000V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Signal to Noise Ratio
Ch. 1
99.266dB
Ch. 2
97.421dB
July 25, 2024
Waveform
Sine
Generator Level
1.000Vrms
DC Offset
0.000V
Frequency
10kHz
Crosstalk
Ch. 1
-66.329dB
Ch. 2
-58.949dB
July 25, 2024
Waveform
Sine
Frequency
1kHz
Start Level
1.000Vrms
Stop Level
7.600Vrms
Step Type
Logarithmic
Number of Points
31
DC Offset
0.000V
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Generator Frequency

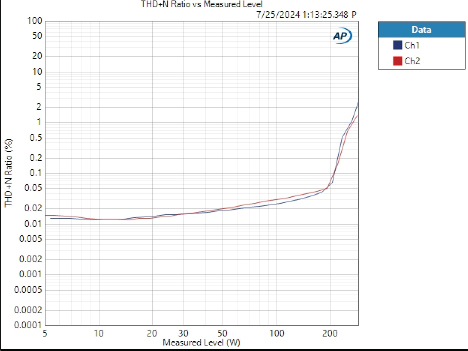

THD+N Ratio vs Measured Level
