SS4.3000 – 2ohm – APX 515b Report
October 23, 2024
Waveform
Sine
Generator Level
6.400Vrms
DC Offset
0.000V
Frequency
1kHz
Low-Pass Filter
Signal Path
RMS Level
Ch. 1
0.992kW
Ch. 2
1.001kW
October 23, 2024
Waveform
Sine
Generator Level
6.400Vrms
DC Offset
0.000V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Measured Frequency
THD+N Ratio
Ch. 1
1.661914
Ch. 2
1.923871
October 23, 2024
Start Frequency
20Hz
Stop Frequency
20kHz
Generator Level
3.000Vrms
DC Offset
0.000V
EQ
None
Pre-Sweep
0.000S
Sweep
350mS
Extend Acquisition By
50mS
Secondary Source
None

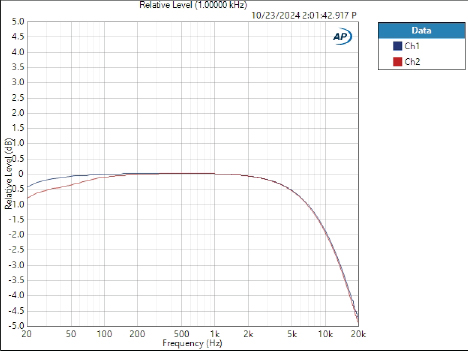

Relative Level 1kHz
October 23, 2024
Waveform
Sine
Frequency
1kHz
Start Level
500mVrms
Stop Level
6.600Vrms
Step Type
Logarithmic
Number of Points
34
DC Offset
0.000V
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Generator Frequency

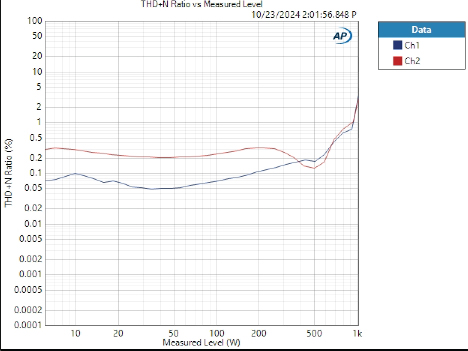

THD+N Ratio vs Measured Level
