SS4.3000 – 4ohm – APX 515b Report
test
October 23, 2024
Waveform
Sine
Generator Level
7.300Vrms
DC Offset
0.00V
Frequency
1kHz
Low-Pass Filter
Elliptic
RMS Level
Ch. 1
667.1W
Ch. 2
676.5W
October 23, 2024
Waveform
Sine
Generator Level
7.300Vrms
DC Offset
0.00V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Measured Frequency
THD+N Ratio
Ch. 1
1.199392
Ch. 2
1.497145
October 23, 2024
Start Frequency
20Hz
Stop Frequency
20kHz
Generator Level
3.500Vrms
DC Offset
0.00V
EQ
None
Pre-Sweep
0.00S
Sweep
350mS
Extend Acquisition By
50mS
Secondary Source
None

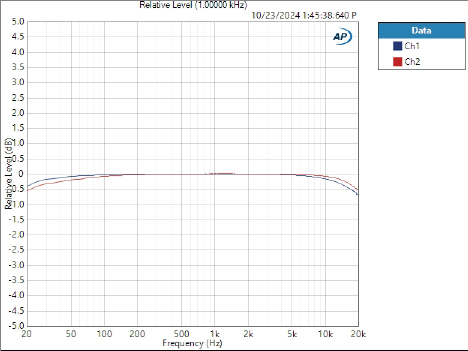

Relative Level 1k
October 23, 2024
Waveform
Sine
Generator Level
7.300Vrms
DC Offset
0.00V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Signal to Noise Ratio
Ch. 1
96.782dB
Ch. 2
92.400dB
One Channel Undriven
October 23, 2024
Waveform
Sine
Generator Level
3.500Vrms
DC Offset
0.000V
Frequency
10kHz
Crosstalk
Ch. 1
63.294dB
Ch. 2
52.837dB
October 23, 2024
Waveform
Sine
Frequency
1kHz
Start Level
500mVrms
Stop Level
7.500Vrms
Step Type
Logarithmic
Number of Points
34
DC Offset
0.000V
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Generator Frequency

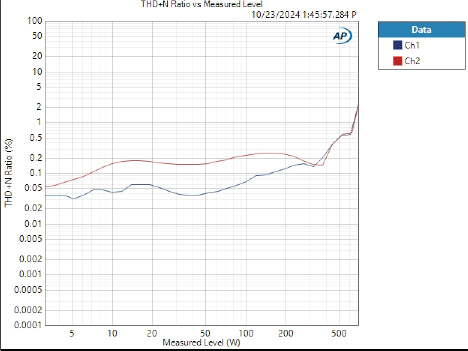

THD+N Ratio vs Measured Level
