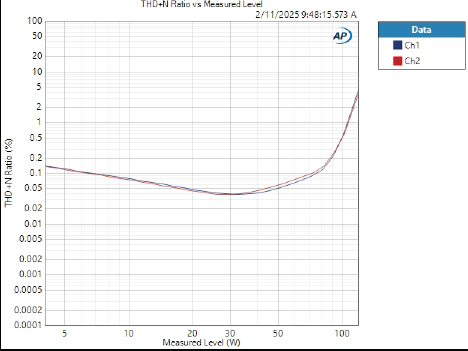

SS5.500 – 4ohm – Channels 1 to 4 – APX 515b Report
February 11, 2025
Waveform
Sine
Generator Level
5.200Vrms
DC Offset
0.000V
Frequency
1kHz
Low-Pass Filter
Signal Path
RMS Level
Ch. 1
107.2W
Ch. 2
109.0W
February 11, 2025
Waveform
Sine
Generator Level
5.200Vrms
DC Offset
0.000V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Measured Frequency
THD+N Ratio
Ch. 1
1.151055
Ch. 2
1.250649
February 11, 2025

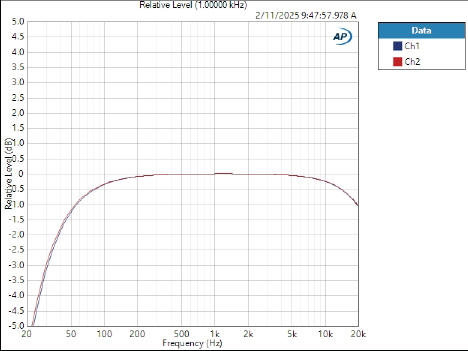

Start Frequency
20Hz
Stop Frequency
20kHz
Generator Level
2.600Vrms
DC Offset
0.000V
EQ
None
Pre-Sweep
0.000S
Sweep
350mS
Extend Acquisition By
50mS
Secondary Source
None
February 11, 2025
Waveform
Sine
Generator Level
5.200Vrms
DC Offset
0.000V
Frequency
1kHz
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Signal to Noise Ratio
Ch. 1
98.679dB
Ch. 2
99.126dB
February 11, 2025
Waveform
Sine
Generator Level
2.600Vrms
DC Offset
0.000V
Frequency
10kHz
Crosstalk
Ch. 1
54.087dB
Ch. 2
52.200dB
February 11, 2025
Waveform
Sine
Frequency
1kHz
Start Level
1.000Vrms
Stop Level
5.600Vrms
Step Type
Logarithmic
Number of Points
31
DC Offset
0.000V
High-Pass Filter
Elliptic
High-Pass Frequency
20Hz
Low-Pass Filter
Elliptic
Low-Pass Frequency
20kHz
Weighting Filter
Signal Path
Notch Tuning Mode
Generator Frequency
