VO-W710

Voice Optimized Woofer

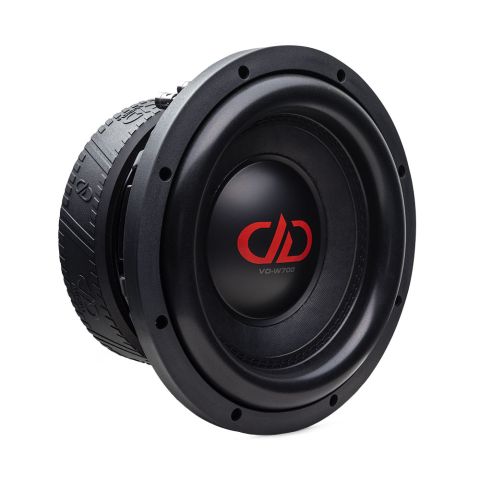

wp-content/uploads/2024/05/VO-W710-Shallow-Subwoofer-01.png

Search Authorized DD AUDIO Dealers Near You

The VO-W700s are drivers made to satisfy an underappreciated bandwidth between the bottom end of a midrange and the heavy lows of the subwoofer, striking a balance of clarity and power that puts them in a class of their own. With a rich pedigree tracing back to the 1990’s era of Digital Designs 9000 Series subwoofers, and a sleek undemanding profile, these woofers have been made for applications where depth is limited, but expectations are not.

The feature rich VO-W700 woofers are the ideal choice when the system design requires a higher crossover pointing to high output midranges, where normal subwoofer rolloff leaves a frequency gap. Best of all, the combination of high motor force, tight control, and compact cast frame, allow the VO-W700s to be used in small vented box designs, taking advantage of vehicle acoustic loading, allowing you to enjoy the low end punch with a higher frequency attack, from a myriad of locations in the most cramped of cabin spaces.

Available in the 10 inch VO-W710 and 12 inch VO-W712.

Features

  • 7.4” Diameter, Double Magnet Motor
  • Multi-Vent Free Flow Cooling System
  • Aluminum Shorting Ring
  • 3” High-Temp Voice Coil
  • Excursion Optimized Compact Cast Frame
  • High Density Surround
  • Weather Resistant Pressed Cone
  • 7.5” Dual Layer Cloth Spider
  • 1200 Watt RMS Power Handling
  • Embossed DDesign Magnet Boot

VO-W710: 1200W – 10 inch PA Woofer

Speaker Size (In): 10
Watts RMS: 1200
Impedance: D2 / D4
VCD (In): 3
Piston Diameter (MM): 203.2
Frequency Response (Hz): 35 - 2k
Fs (Hz): 42
Qms: 4.684
Qes: 0.462
Qts: 0.421
Vas (Liters): 9.331
BL (TM): 30
Xmech (MM): 30
Xmax (MM): 12
Suspension Travel (MM): 30
Frame OD w/Gasket (In): 10.625
Mounting Diameter (In): 9.375
Mounting Diameter (MM): 238
Mounting Depth (In): 4.8125
Mounting Depth (MM): 122
Price (USD): 329 each
Marine grade icon

Any DD Audio Product bearing the Marine Grade logo incorporates water resistant features enabling it to be used in applications where moderate exposure to moisture will not result in damage to the product.

Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.

LOUD AND CLEAR

If you’re looking for superior motorcycle audio solutions that sound as good on the highway as they do while you’re jammin’ out in the parking lot, we’ve got you covered. From amplifiers to speakers and DSP’s, these products are powerful enough to break through the roars of the ride to give direct, loud and clear sound.

Learn why these products are the superior choice for motorcycle audio solutions.

superior motorcycle audio with VO-W speakers with horn in saddle bags

The high output, voice optimized speakers are a hybrid of Pro Audio and Audiophile technologies. Shorting ring motors, long fiber curve sided cones, precise edge terminations and CnC motors with integrated Free Flow Cooling combine to give high fidelity at previously unattainable levels.

Jabee Toyota Prius Loaded Enclosure Being Installed

Support Small Business and Enjoy Expert Installation

We believe in supporting brick and mortar dealers and have carefully partnered with small businesses who can provide quality installation and customer satisfaction befitting DD AUDIO® equipment.

Check with your local dealer for stock and promotional discounts.
