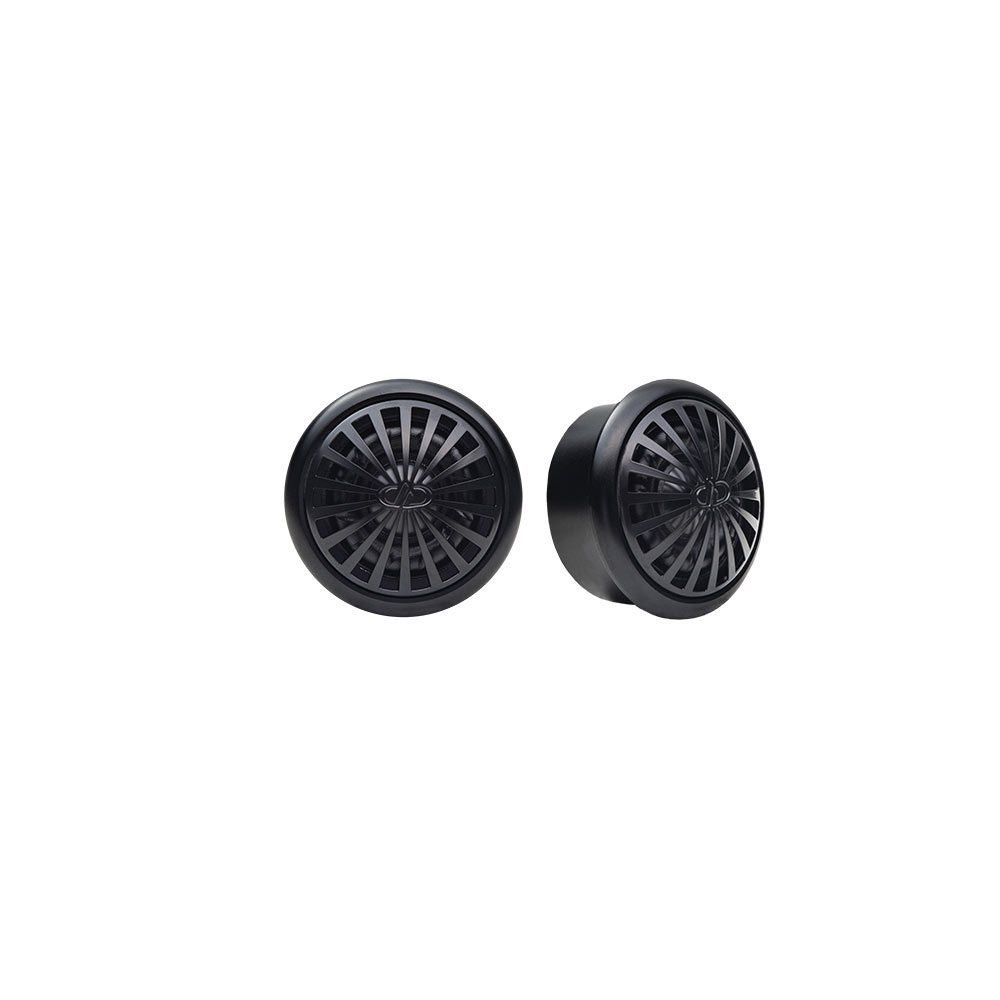

THE 20MM TWEETER
The C Series broadband tweeter design includes a special cavity back that’s capable of handling additional octaves. This raises up the important frequencies in the vehicle to improve realistic imaging and overcome deficiencies exaggerated by distances between OEM locations.

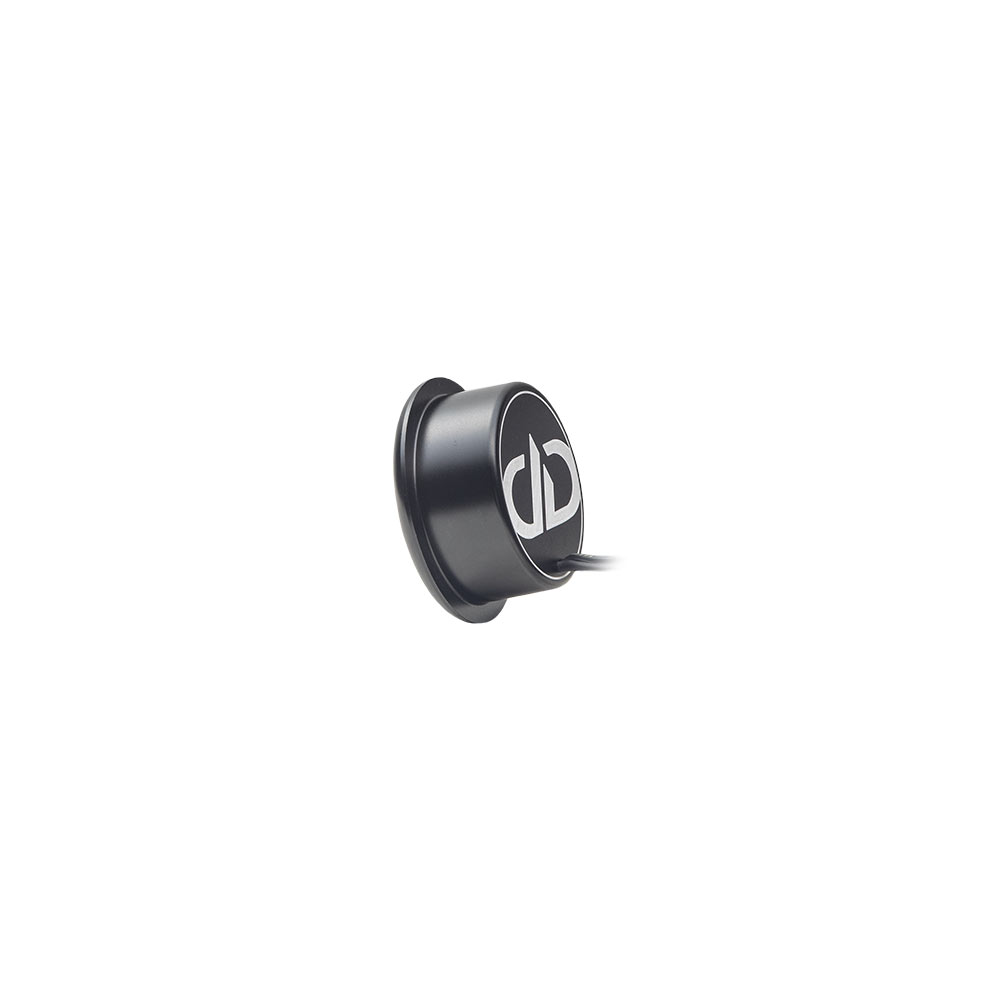

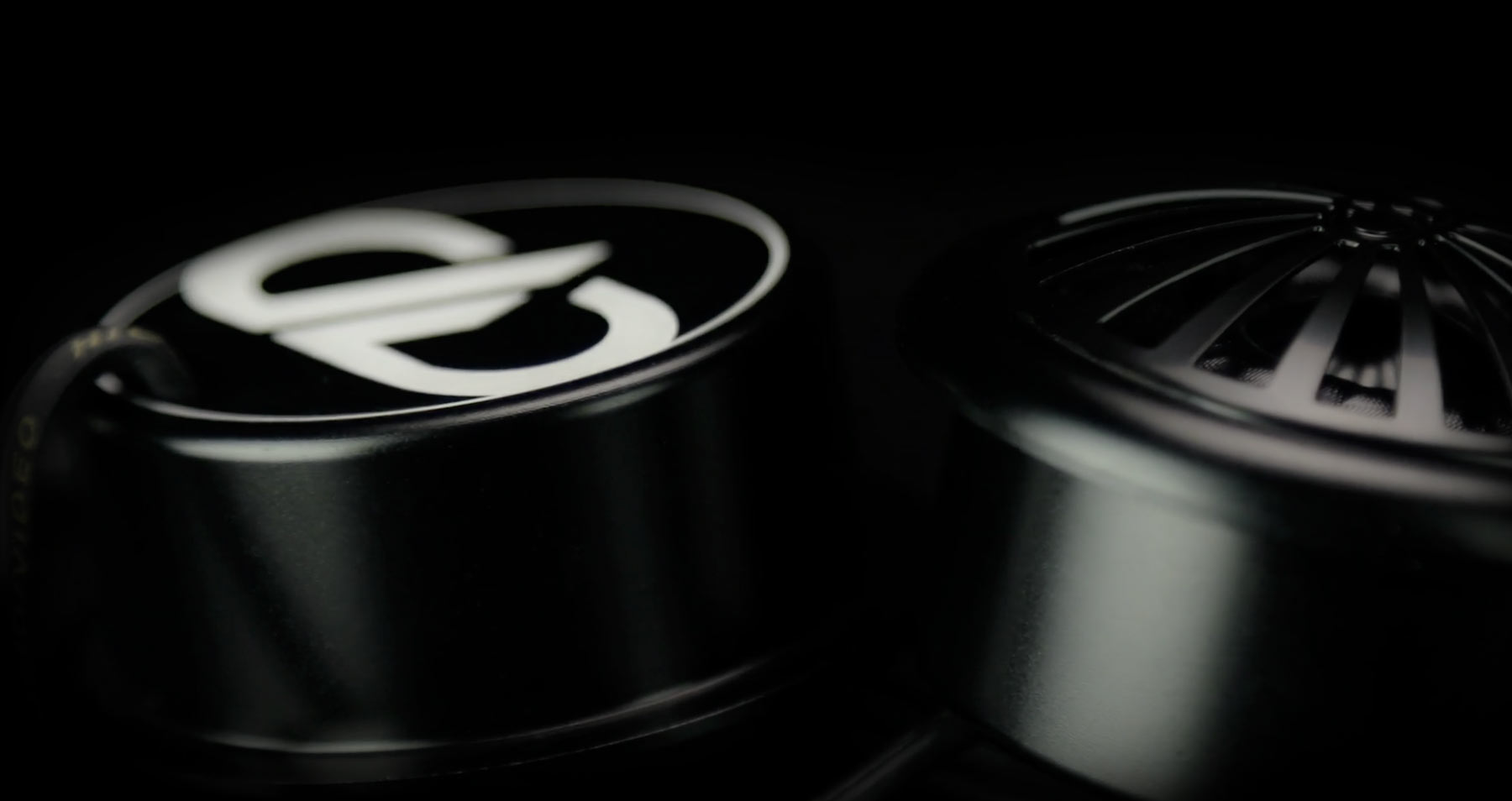

The main and auxiliary double magnet neo-motor system plus copper shorting ring form a stable magnetic field, reduce inductance modulation and lowers distortions. The CnC turned aluminum alloy back cavity is machined to improve sound back wave diffusion, absorption and low frequency tuning.

BROADBAND BRILLIANCE
The ultra light and ultra rigid hemispherical diaphragm is composed of an advanced magnesium-aluminum alloy, with a thickness of only 0.035mm to yield lighting fast transients. It’s coupled to a tangential impregnated surround, suppressing segmented frequency nodes while allowing long excursion control. The low mass of the copper clad aluminum voice coil helps increase sensitivity and transients.

The combination of highly advanced materials, focused magnetic geometry and tuned back cavity allows the broadband tweeter to have a 580Hz resonant frequency while extending the upper frequency response beyond 40kHz !!

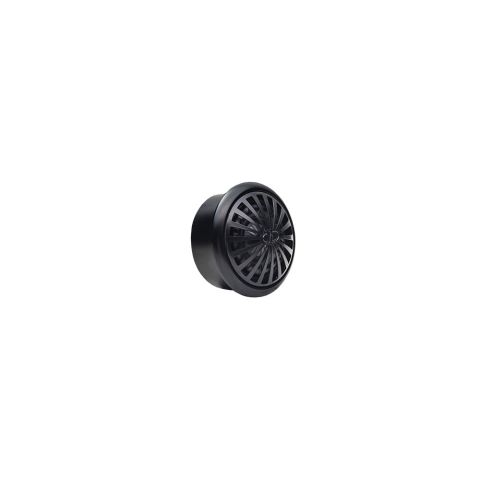

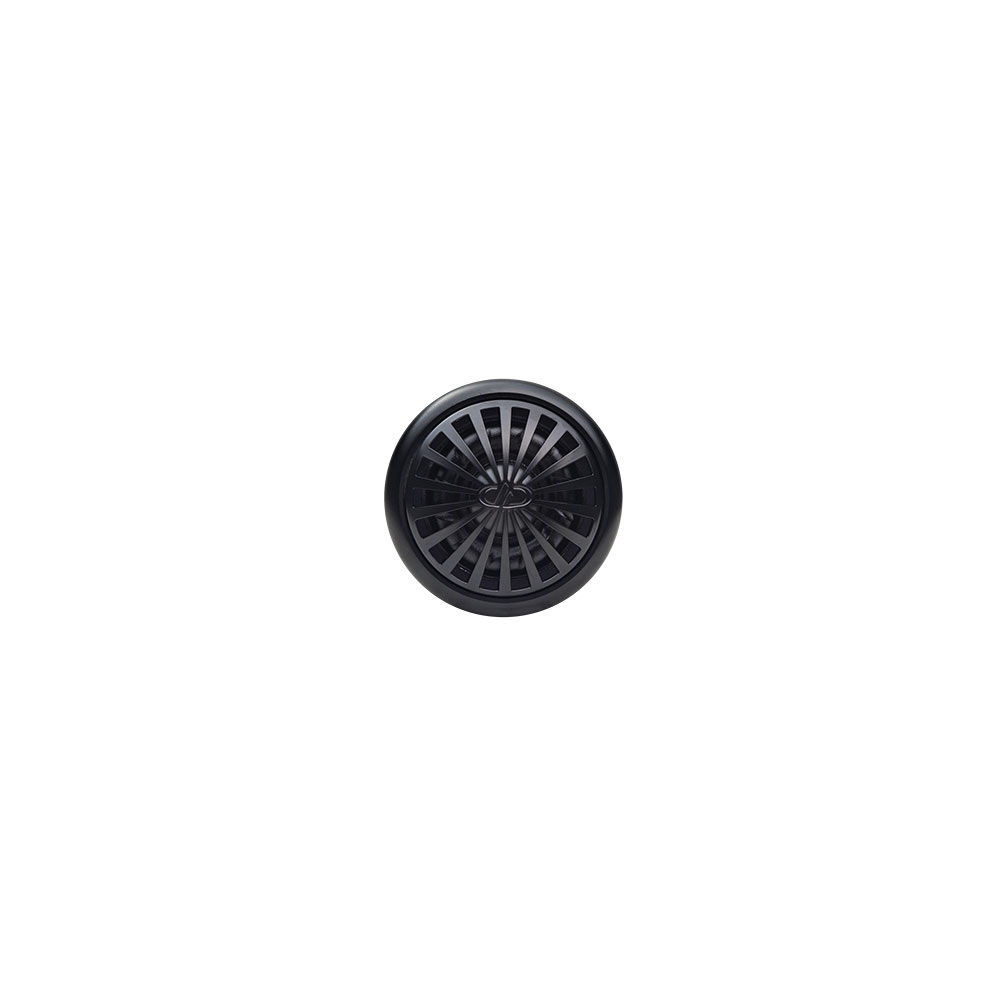

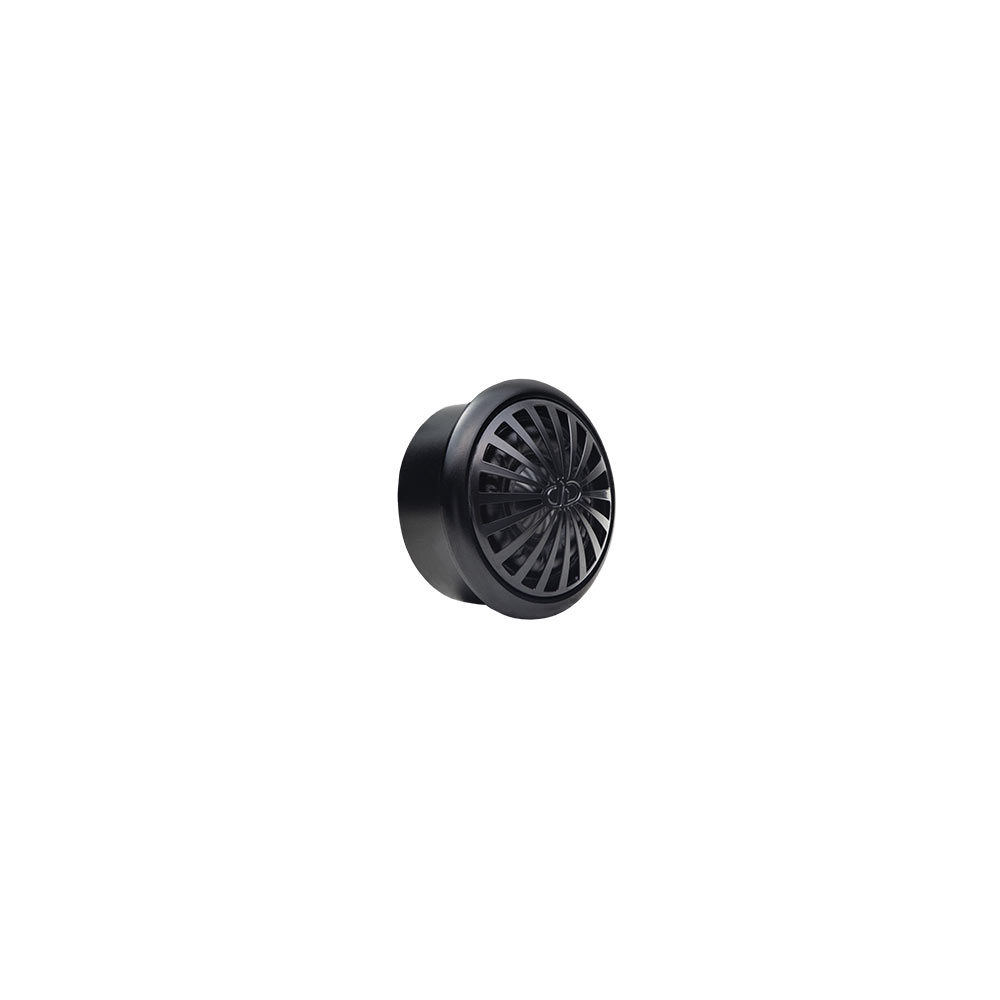

The tweeter diaphragm is protected by a DD stainless steel CnC cut grill and comes supplied with a ABS pod to allow a high degree of installation freedom.
