M Series

Monoblock

Finest in Ultra-High Current Devices

The latest monoblocks in the venerable M Series offer improved power and efficiency with no increase in unit size. They incorporate the finest in ultra-high current devices, optimizing their usage with intelligent configuration to successfully maintain the modest footprint of their predecessors.

Using design features borrowed from the award winning Z12000, the new M Series expands its operating voltage with improvements to the power supply, output section, and high efficiency heat sink, giving these amps a 16v max operation that takes full advantage of today’s lithium batteries for the best power to footprint ratio to date!

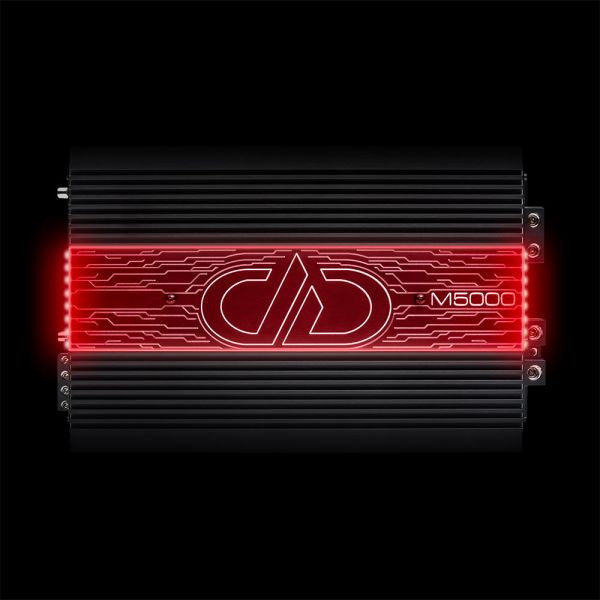

To further enhance performance, the M Series features new end panels, raising the amps off the mounting surface, allowing the internal fan to pull more air through the PCB even on carpeted or padded surfaces. These high current half bridge amps are more compact, lighter and pack more punch than any previous M Series. The vanity plates are made to upgraded with app controlled LED vanity plate, for a totally lit audio experience.

  • Optimized Über High Current Power Supply
  • Strappable Half Bridge Design
  • ZVL Linking Module Input
  • 24dB/Oct Bandpass Filters
  • Custom Vanity Plate Ready
  • Remote / LCD Voltage Display and Clipping Indicator

MODEL / SPECS

MODEL / SPECS




Frequency Response (Hz)

20 - 500

20 - 500

20 - 500


Operating Voltage

9 - 16

9 - 16

9 - 16


Test Voltage

14.4

14.4

14.4



Total Wattage

2500

5000

9000


Continuous Wattage @ 4Ω

1000

1900

3000


Continuous Wattage @ 2Ω

1500

3000

5500


Continuous Wattage @ 1Ω

2500

5000

9000


Dynamic Wattage

4000

7000

12000


Max Current Draw

400

700

1500


RCA Input Voltage Sensitivity

8 - 0.2

8 - 0.2

8 - 0.2


RCA Input S/N

> 97

> 97

> 105


Damping Factor

> 400

> 400

> 400


THD

<1%

<1%

<1%


Sub-Sonic Filter

20 - 250Hz

20 - 250Hz

20 - 250Hz


Low-Pass Filter

50 - 500Hz

50 - 500Hz

50 - 500Hz




Power Wire Gauge In

1 x 0

2 x 0

3 x 0


Speaker Wire Gauge Out

10

10

10


Competition Grade

Whether you’re in the lanes going for an SPL world record, or you’re out to impress judges with a completely customized classic, DD AUDIO’s competition grade equipment has been performance built to take your ride to the next level.

Lit Audio

LED Ready products either come with LED lights integrated or are ready to be used with LED packages of your choosing to light your ride’s audio. From lit amplifier vanity plates to translucent speaker ghost cones for easy backlighting effects, LEDs are a perfect way to shine out while pounding the pavement.
