SS4.1300

Big, Clean Power

wp-content/uploads/2024/07/SS4.1300-amplifier-feature.jpg

Search Authorized DD AUDIO Dealers Near You

The new SS4.1300 brings next level power to the multi-channel wing of the SS Series amplifier line-up. With nearly 200 watts per channel at 4 Ohms and over 325 Watts at 2 Ohms, these compact amps will drive pro audio and motorcycle systems to new extremes with exceptional sound quality.

The SS amplifiers quickly earned a reputation for big clean power from a small package. Their high speed, high current class D designs offer high power and superior sound quality in compact footprints. The classic DD AUDIO style heat sink provides max cooling thanks to 50% more side wall thickness than industry norms with extra long fins to increase surface area. As with all DD amps, all major components are name brands; use higher current mosfets and output devices, increased power capacitors, a more powerful transformer, plus improved venting and PCB with twice the thermal capability.

These new high-end mini amps are state of the art, no compromise designs yielding the best sound with unparalleled power to size ratio. The transformation is physically tangible and audibly undeniable.

Features

  • High Level Inputs

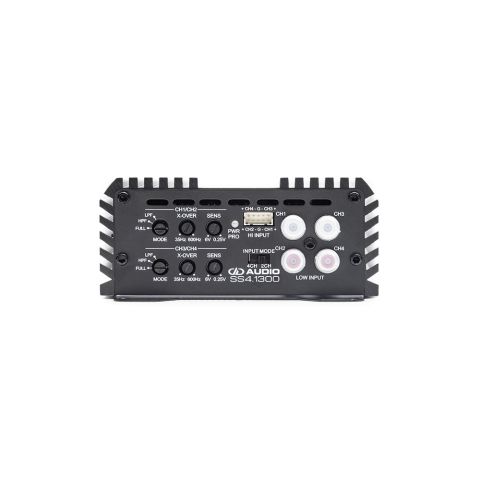

  • 12dB/Oct High Pass/Low Pass X-Overs
  • Heavyweight DD Aluminum Chassis

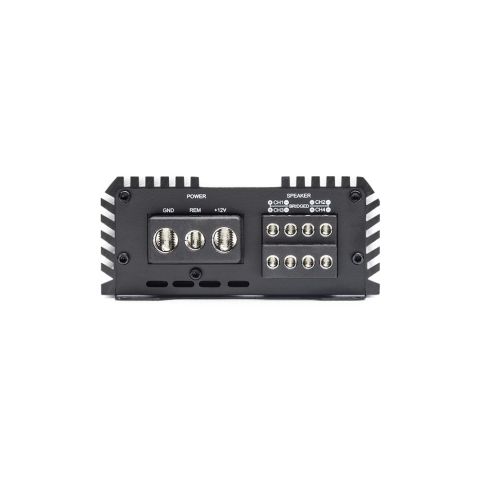

  • Set Screw Power and Speaker Terminals
  • 4 AWG Power Terminals

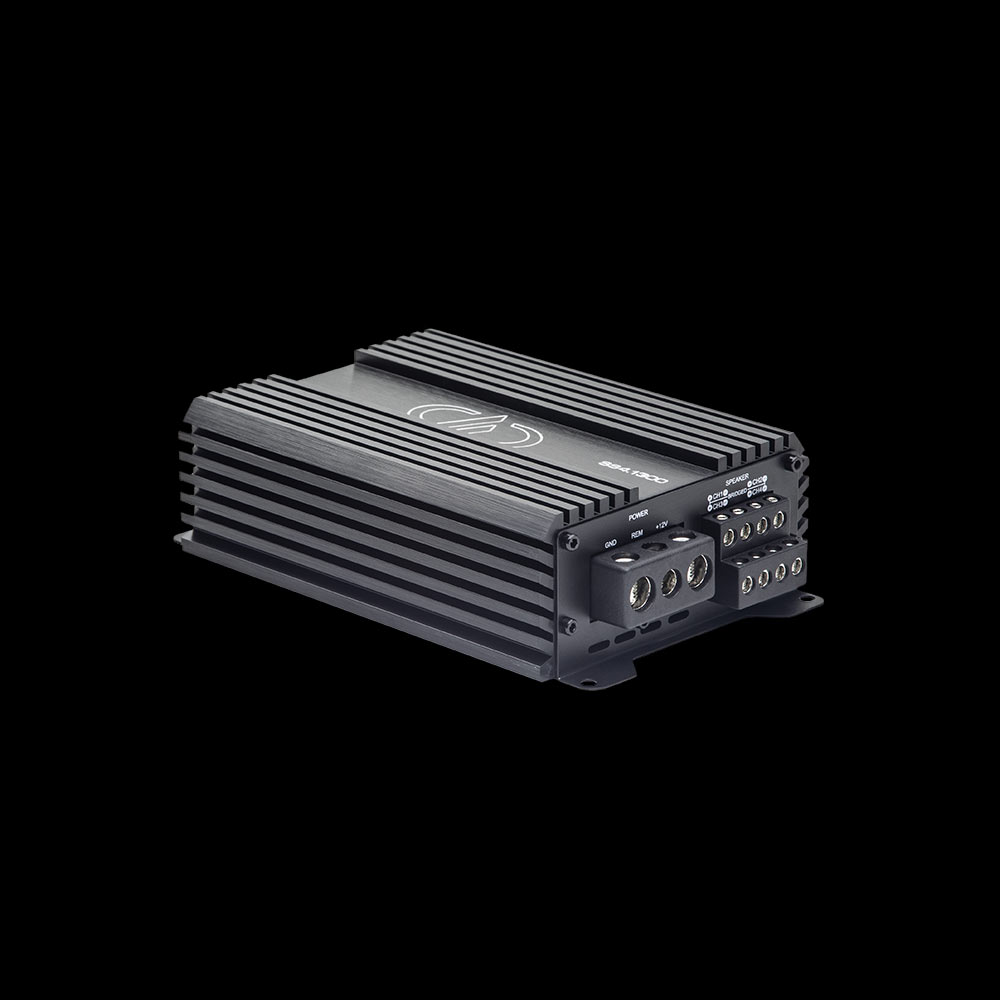

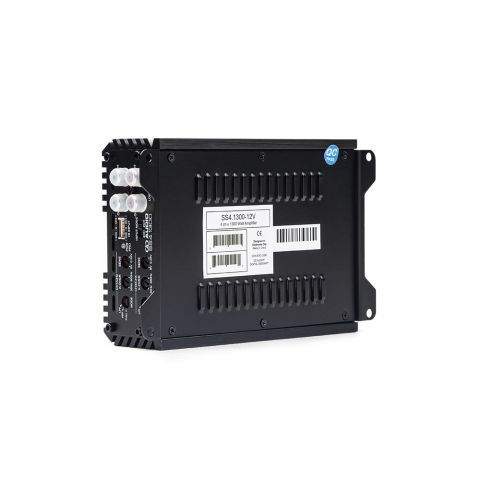

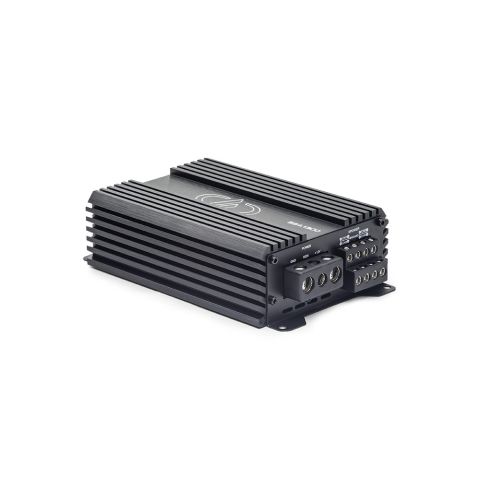

SS4.1300: 1300 Watt – 4 Channel Amplifier

Operating Voltage: 9 - 16
Test Voltage: 14.4
Input Channel(s): 4
Output Channel(s): 4
Continuous Wattage @4ohm: 180 x 4 / 650 x 2
Continuous Wattage @2ohm: 325 x 4
Max Current Draw (Amps): 150
RCA Input Voltage Sensitivity: 6 - 0.25
High-Level Input Voltage Sensitivity: 20 - 1.1
RCA Input S/N: > 95
Damping Factor: > 100
THD: < 1.0%
Frequency Response (Hz): 20 - 20k
High Pass Filter: 35 - 600
Low-Pass Filter: 35 - 600
Power Wire Gauge: 4
Speaker Wire Gauge: 14
Dimensions (Inches): 6.25 x 4.6 x 2
Dimensions (MM): 159 x 117 x 50
Price (USD): 359 each

LOUD AND CLEAR

If you’re looking for superior motorcycle audio solutions that sound as good on the highway as they do while you’re jammin’ out in the parking lot, we’ve got you covered. From amplifiers to speakers and DSP’s, these products are powerful enough to break through the roars of the ride to give direct, loud and clear sound.

Learn why these products are the superior choice for motorcycle audio solutions.

superior motorcycle audio with VO-W speakers with horn in saddle bags

For the SS Series the main design focus was to pack as much full-range stereo output capability as possible into as compact of a chassis as possible. We utilized discrete circuit class D technology for ultra low distortion levels that rival class AB designs. The resulting amp is capable of driving multiple driver mid-range and tweeter arrays while consuming less current, taking up less space and delivering more power.

Jabee Toyota Prius Loaded Enclosure Being Installed

Support Small Business and Enjoy Expert Installation

We believe in supporting brick and mortar dealers and have carefully partnered with small businesses who can provide quality installation and customer satisfaction befitting DD AUDIO® equipment.

Check with your local dealer for stock and promotional discounts.
